MFR #:6316 ZJEM
EIS #:6316Z04
Series #:6316
UPC #:07316576619632
MFR #:6316 ZJEM
EIS #:6316Z04
Series #:6316
UPC #:07316576619632
Low Stock
Min Qty:1
|Qty Increment:1

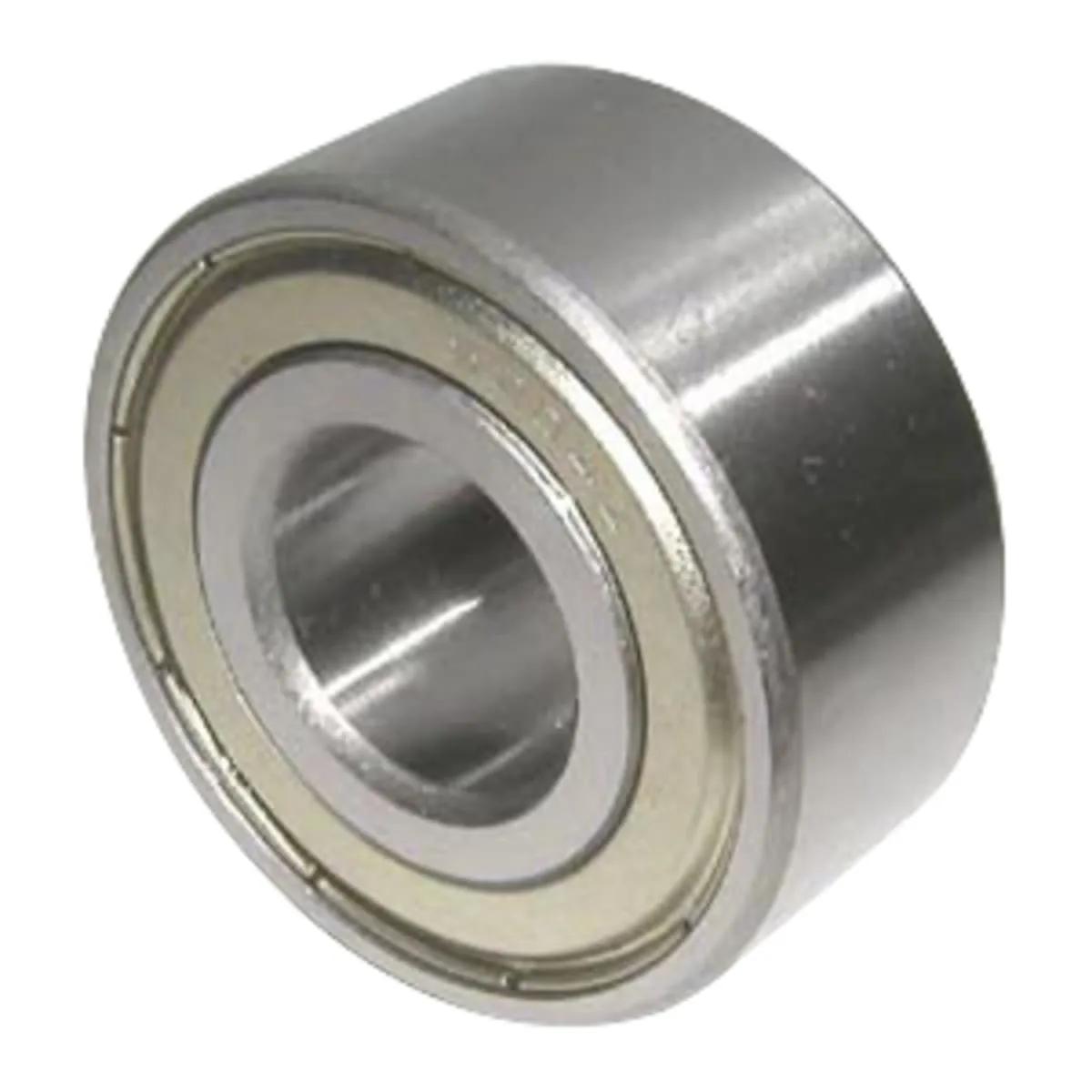

SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$346.73 / Piece
Min Qty:1
|Qty Increment:1
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6316
General Features
Net Weight3.66kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeSingle Shield
Performance Details
Dynamic Load Capacity130000 N
Static Load Capacity86500 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter80 mm
Fillet Radius2 mm
Number of Rows1
Outside Diameter170 mm
Width39 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Speed Rating: 5300 rpm Limiting, 8500 rpm Reference
- Temperature Rating: -40 to 100 °C
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
