SKF 6315-Z Single Row Deep Groove Radial Ball Bearing, 75 mm Bore x 160 mm OD x 37 mm W, Single Shield, Pressed Steel Cage

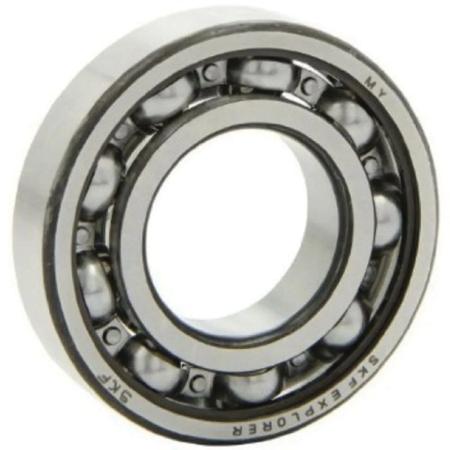

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:6315 ZJEM

EIS #:6315Z04

Series #:6315

UPC #:07316576619571

MFR #:6315 ZJEM

EIS #:6315Z04

Series #:6315

UPC #:07316576619571

Low Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$347.85 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Attributes

General Information
Item NameDeep Groove Radial Ball Bearing
Series6315
General Features
Net Weight3.09kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeSingle Shield
Performance Details
Dynamic Load Capacity119000 N
Static Load Capacity76500 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter75 mm
Fillet Radius2 mm
Number of Rows1
Outside Diameter160 mm
Width37 mm
