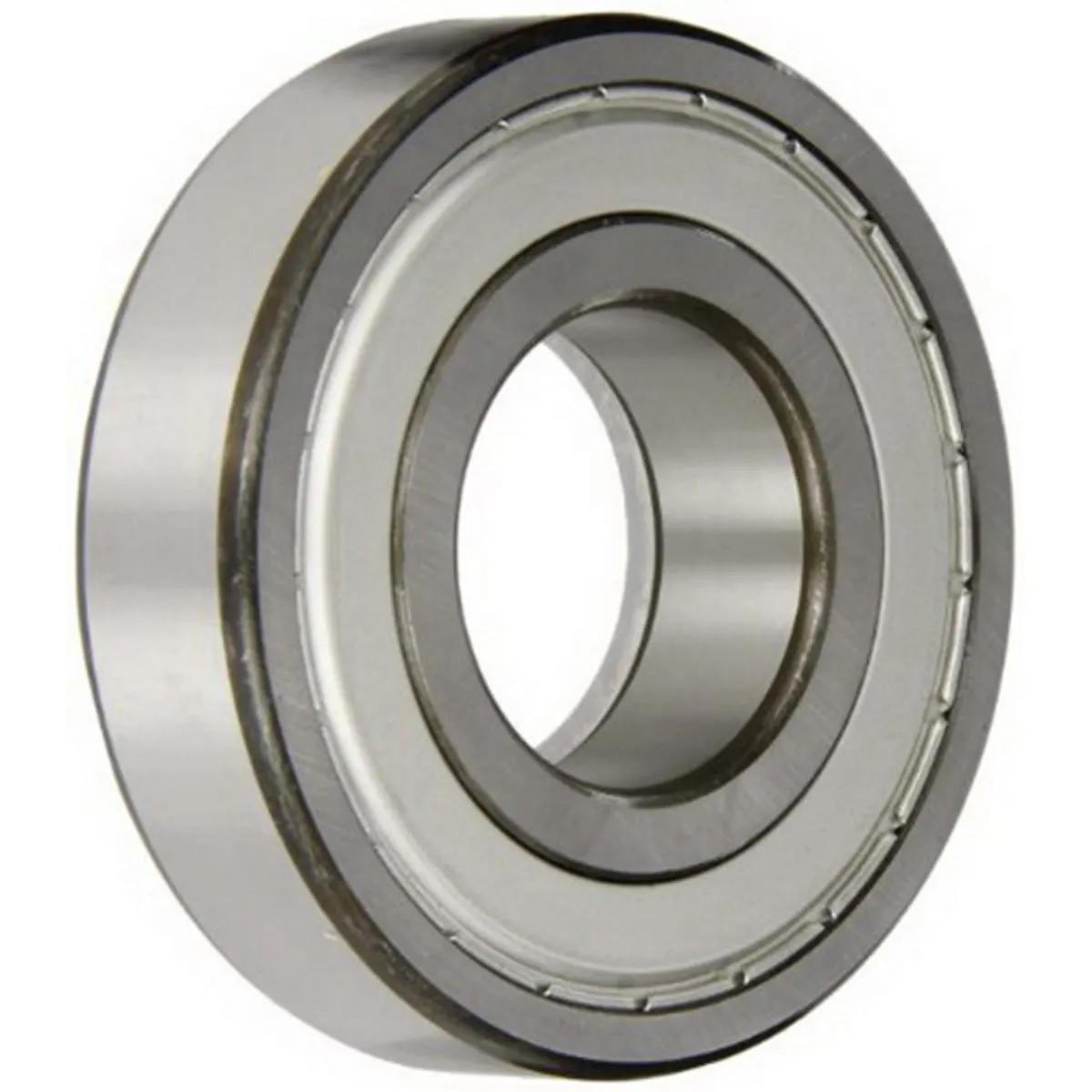

SKF 6309-2Z Single Row Deep Groove Radial Ball Bearing, 45 mm Bore x 100 mm OD x 25 mm W, Double Shield, Pressed Steel Cage

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:6309 2ZJEM

EIS #:6309ZZ04

Series #:6309

UPC #:07316577063779

MFR #:6309 2ZJEM

EIS #:6309ZZ04

Series #:6309

UPC #:07316577063779

In Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$87.27 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Attributes

General Information
Item NameDeep Groove Radial Ball Bearing
Series6309
General Features
Net Weight0.868kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity55300 N
Static Load Capacity31500 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter45 mm
Fillet Radius1.5 mm
Number of Rows1
Outside Diameter100 mm
Width25 mm
