MFR #:6308 2ZJEM
EIS #:6308ZZ04
Series #:6308
UPC #:07316576681820
MFR #:6308 2ZJEM
EIS #:6308ZZ04
Series #:6308
UPC #:07316576681820
Low Stock
Min Qty:1
|Qty Increment:1

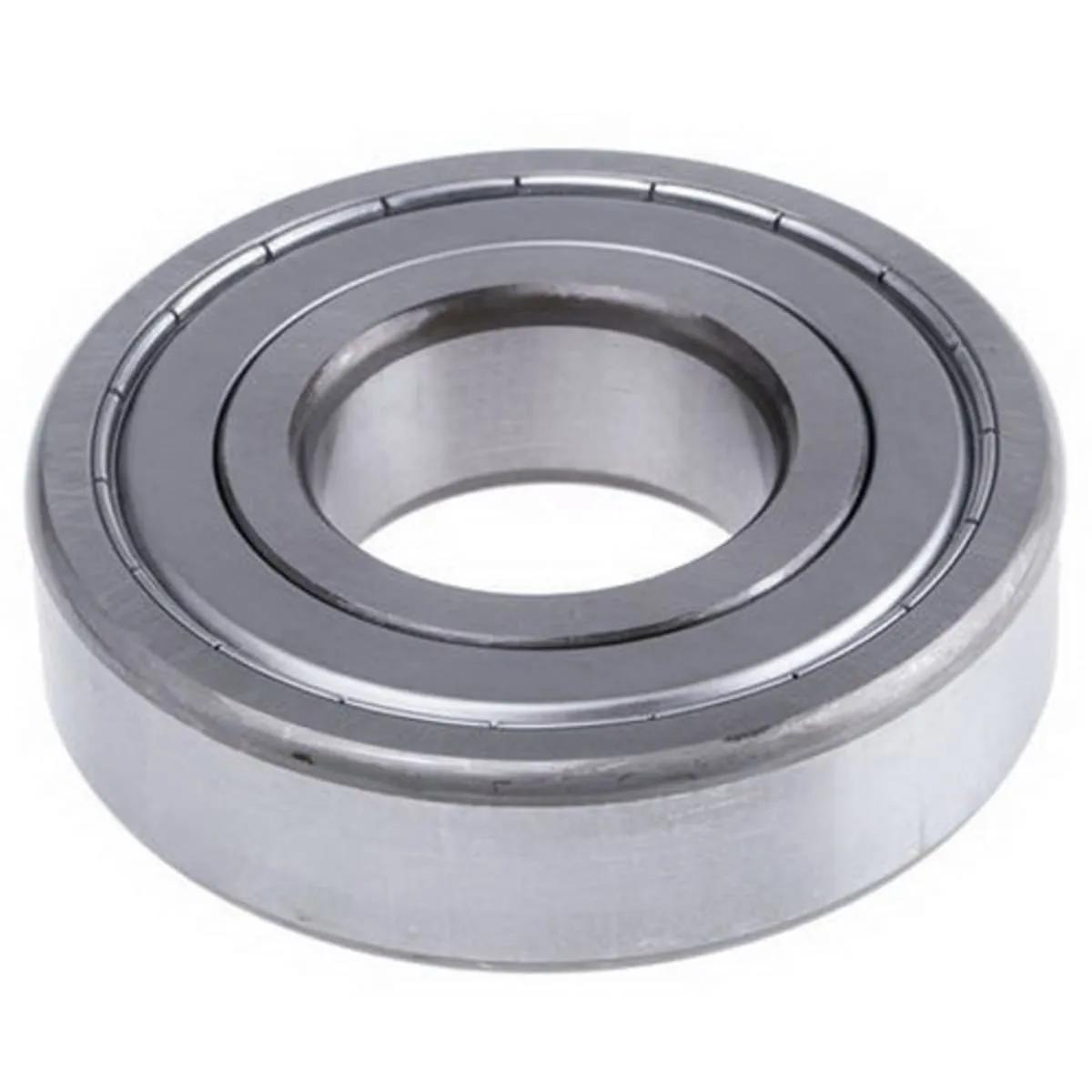

SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$74.98 / each
Min Qty:1
|Qty Increment:1
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6308
General Features
Net Weight0.654kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity42300 N
Static Load Capacity24000 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter40 mm
Fillet Radius1.5 mm
Number of Rows1
Outside Diameter90 mm
Width23 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Speed Rating: 8500 rpm Limiting, 17000 rpm Reference
- Temperature Rating: -40 to 100 °C
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
