MFR #:6307 2ZJEM
EIS #:6307ZZ04
Series #:6307
UPC #:07316577063687
MFR #:6307 2ZJEM
EIS #:6307ZZ04
Series #:6307
UPC #:07316577063687
Low Stock
Min Qty:1
|Qty Increment:1
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$59.45 / each
Min Qty:1
|Qty Increment:1
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information

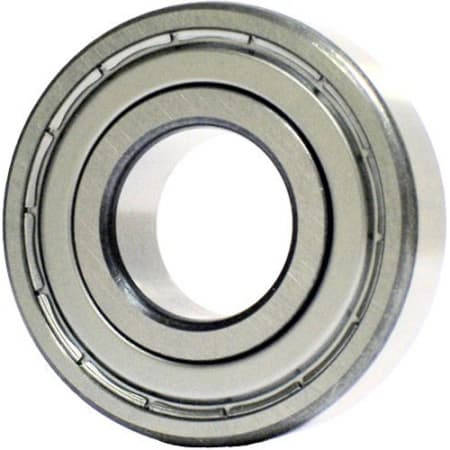

Item NameDeep Groove Radial Ball Bearing
Series6307
General Features
Net Weight0.475kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity35100 N
Static Load Capacity19000 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter35 mm
Fillet Radius1.5 mm
Number of Rows1
Outside Diameter80 mm
Width21 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Speed Rating: 9500 rpm Limiting, 19000 rpm Reference
- Temperature Rating: -40 to 100 °C
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
