MFR #:6302 2ZJEM
EIS #:6302ZZ04
Series #:6302
UPC #:07316576619045
MFR #:6302 2ZJEM
EIS #:6302ZZ04
Series #:6302
UPC #:07316576619045
In Stock
Min Qty:1
|Qty Increment:1

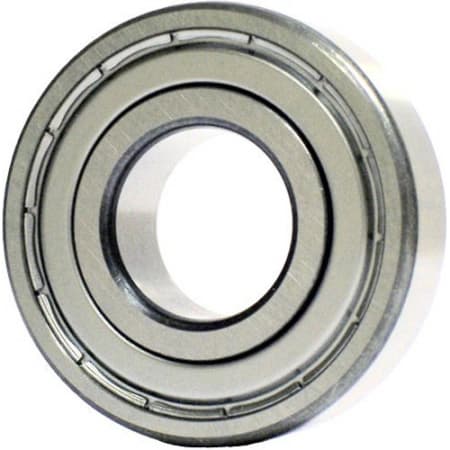

SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$17.48 / each
Min Qty:1
|Qty Increment:1
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6302
General Features
Net Weight0.0863kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity11900 N
Static Load Capacity5400 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter15 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter42 mm
Width13 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Speed Rating: 19000 rpm Limiting, 38000 rpm Reference
- Temperature Rating: -40 to 100 °C
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
