MFR #:6219-2RS1/C3
EIS #:6219-2RS04
Series #:6219
UPC #:07316577066961
MFR #:6219-2RS1/C3
EIS #:6219-2RS04
Series #:6219
UPC #:07316577066961
Low Stock
Min Qty:1
|Qty Increment:1
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$356.10 / Piece
Min Qty:1
|Qty Increment:1
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information

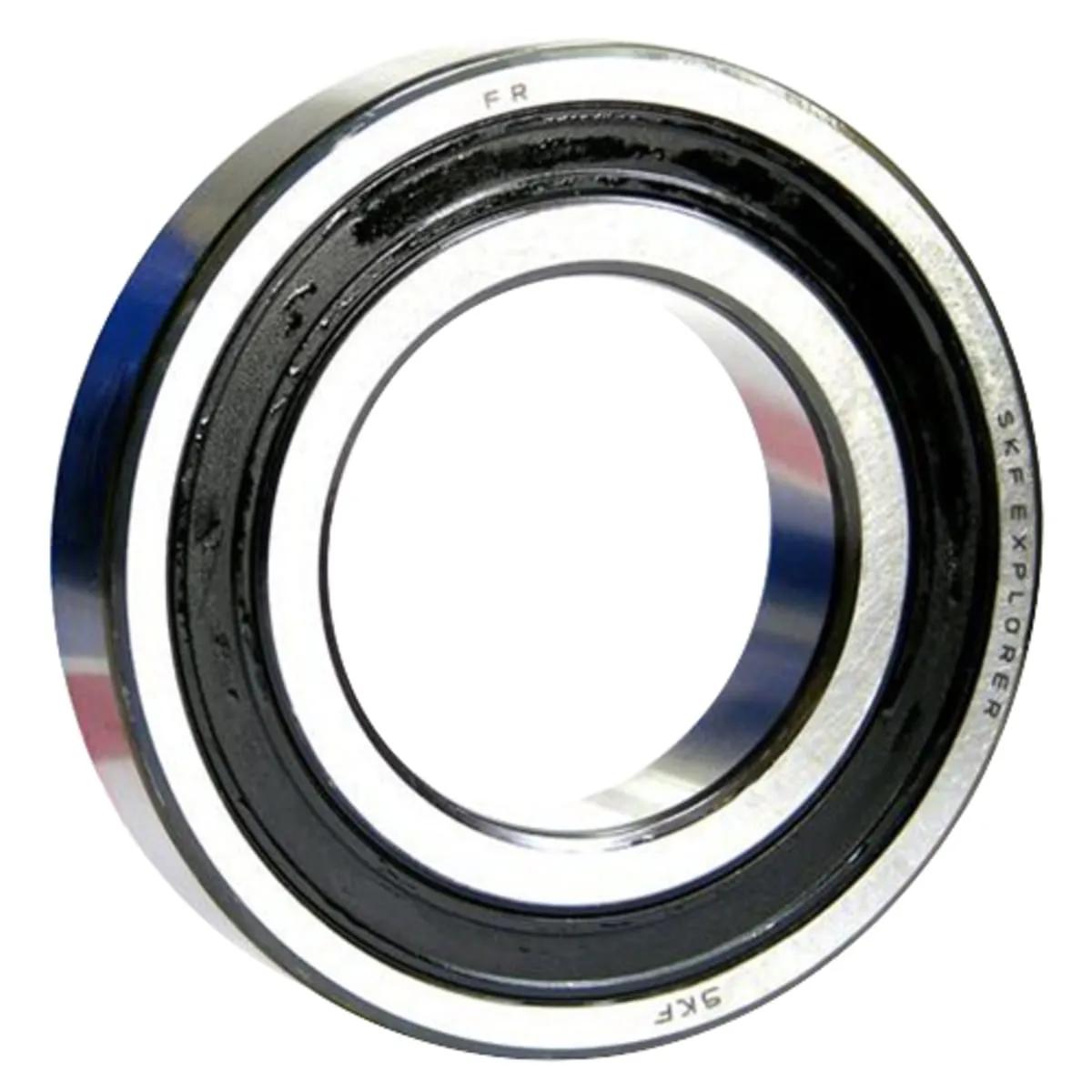

Item NameDeep Groove Radial Ball Bearing
Series6219
General Features
Net Weight2.71kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Seal
Seal MaterialRubber
Performance Details
Dynamic Load Capacity114000 N
Static Load Capacity81500 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter95 mm
Fillet Radius2 mm
Number of Rows1
Outside Diameter170 mm
Width32 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Speed Rating: 2400 rpm Limiting
- Temperature Rating: -40 to 100 °C
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
