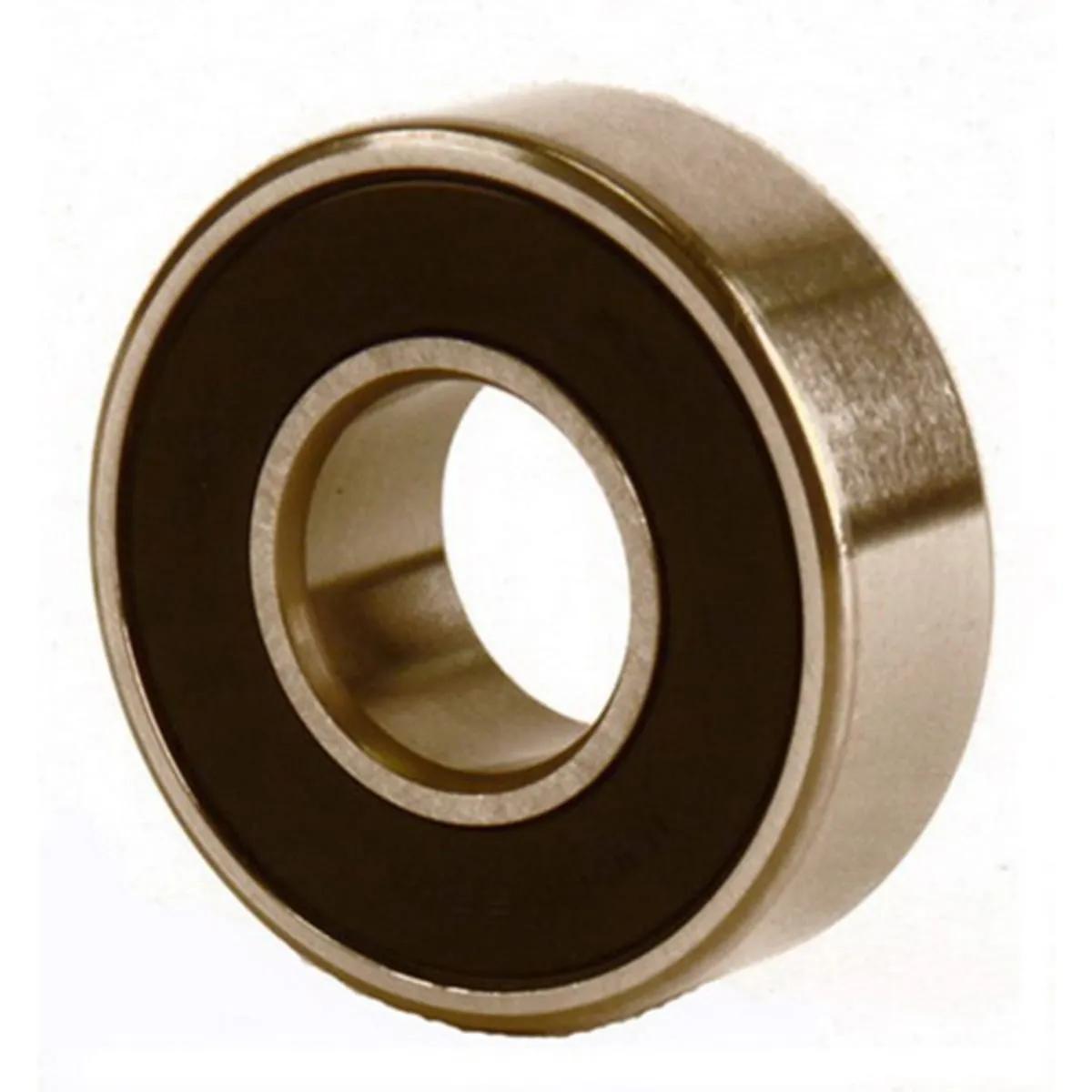

The image shown is representative of the product family and may not specifically be the individual item.
0

SKF 6218-2RS Single Row Deep Groove Radial Ball Bearing, 90 mm Bore x 160 mm OD x 30 mm W, Double Seal, Pressed Steel Cage, MFR ID 6218-2RS1/C3

  • MFR #6218-2RS1/C3
  • EIS #6218-2RS04
  • Series #6218
  • UPC #07316577066862
$624.53 / each
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

General Information

Item NameDeep Groove Radial Ball Bearing

Series6218

General Features

Net Weight2.31kg

Design & Construction

Cage MaterialPressed Steel
Enclosure TypeDouble Seal
Seal MaterialRubber

Performance Details

Dynamic Load Capacity101000 N
Static Load Capacity73500 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter90 mm
Fillet Radius2 mm
Number of Rows1
Outside Diameter160 mm
Width30 mm

Documents

No Documents Found
