SKF 6213-2Z Single Row Deep Groove Radial Ball Bearing, 65 mm Bore x 120 mm OD x 23 mm W, Double Shield, Pressed Steel Cage, MFR ID 6213 2ZJEM

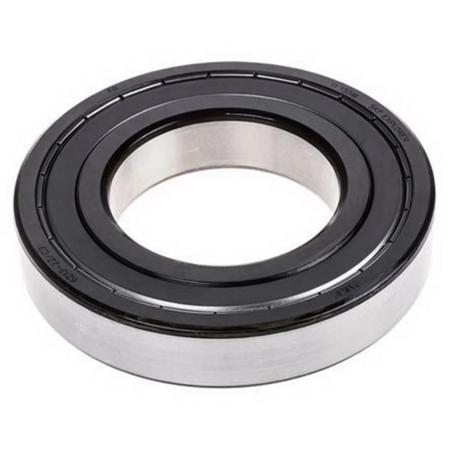

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:6213 2ZJEM
  • EIS #:6213ZZ04
  • Series #:6213
  • UPC #:07316577116819
  • MFR #:6213 2ZJEM
  • EIS #:6213ZZ04
  • Series #:6213
  • UPC #:07316577116819
In Stock | Ready to Ship

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$141.22 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Attributes

General Information

Item NameDeep Groove Radial Ball Bearing

Series6213

General Features

Net Weight1.05kg

Design & Construction

Cage MaterialPressed Steel
Enclosure TypeDouble Shield

Performance Details

Dynamic Load Capacity58500 N
Static Load Capacity40500 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter65 mm
Fillet Radius1.5 mm
Number of Rows1
Outside Diameter120 mm
Width23 mm
