SKF 6209-2Z Single Row Deep Groove Radial Ball Bearing, 45 mm Bore x 85 mm OD x 19 mm W, Double Shield, Pressed Steel Cage

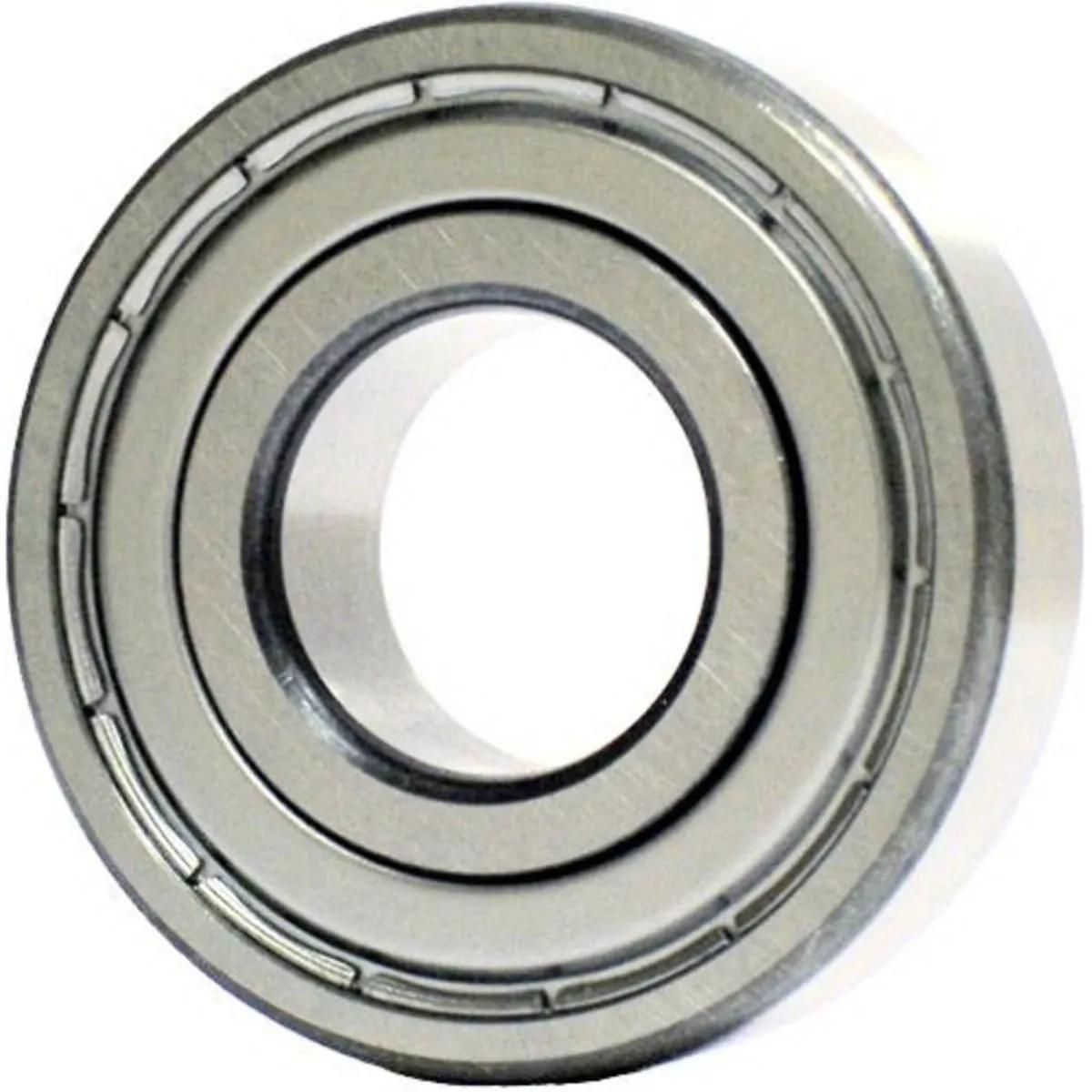

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:6209 2ZJEM

EIS #:6209ZZ04

Series #:6209

UPC #:07316577116710

MFR #:6209 2ZJEM

EIS #:6209ZZ04

Series #:6209

UPC #:07316577116710

Low Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$55.47 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Attributes

General Information
Item NameDeep Groove Radial Ball Bearing
Series6209
General Features
Net Weight0.432kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity35100 N
Static Load Capacity21600 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter45 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter85 mm
Width19 mm
