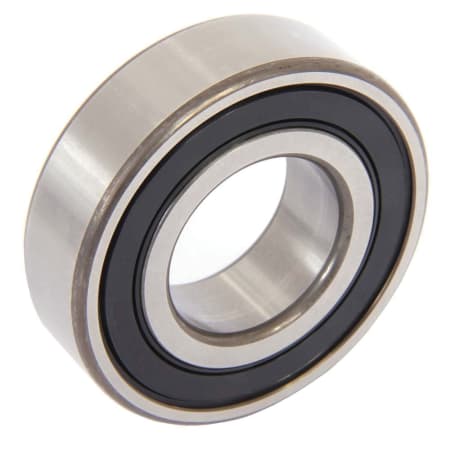

The image shown is representative of the product family and may not specifically be the individual item.
0

SKF 6209-2RS Single Row Deep Groove Radial Ball Bearing, 45 mm Bore x 85 mm OD x 19 mm W, Double Seal, Pressed Steel Cage, MFR ID 6209 2RSJEM

  • MFR #6209 2RSJEM
  • EIS #6209-2RS04
  • Series #6209
  • UPC #07316577068248
$75.05 / each
In Stock | Ready to Ship
Min QTY1QTY Increment1more info
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

General Information

Item NameDeep Groove Radial Ball Bearing

Series6209

General Features

Net Weight0.425kg

Design & Construction

Cage MaterialPressed Steel
Enclosure TypeDouble Seal
Seal MaterialRubber

Performance Details

Dynamic Load Capacity35100 N
Static Load Capacity21600 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter45 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter85 mm
Width19 mm
