SKF 6208-Z Single Row Deep Groove Radial Ball Bearing, 40 mm Bore x 80 mm OD x 18 mm W, Single Shield, Pressed Steel Cage, MFR ID 6208 ZJEM

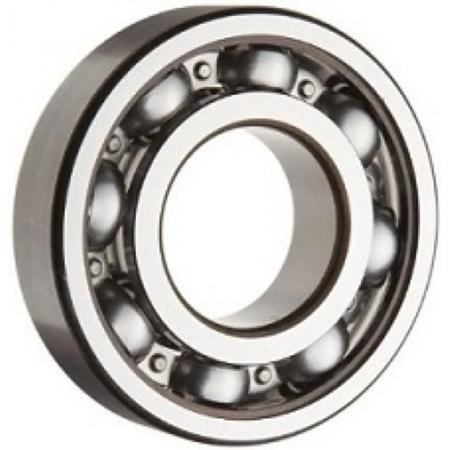

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:6208 ZJEM
  • EIS #:6208Z04
  • Series #:6208
  • UPC #:07316576681110
  • MFR #:6208 ZJEM
  • EIS #:6208Z04
  • Series #:6208
  • UPC #:07316576681110
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$56.98 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Attributes

General Information

Item NameDeep Groove Radial Ball Bearing

Series6208

General Features

Net Weight0.375kg

Design & Construction

Cage MaterialPressed Steel
Enclosure TypeSingle Shield

Performance Details

Dynamic Load Capacity32500 N
Static Load Capacity19000 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter40 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter80 mm
Width18 mm
