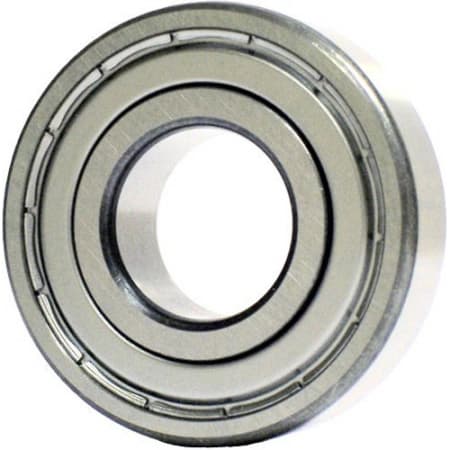

The image shown is representative of the product family and may not specifically be the individual item.
0

SKF 6205-2Z Single Row Deep Groove Radial Ball Bearing, 25 mm Bore x 52 mm OD x 15 mm W, Double Shield, Pressed Steel Cage, MFR ID 6205 2ZJEM

  • MFR #6205 2ZJEM
  • EIS #6205ZZ04
  • Series #6205
  • UPC #07316576612817
$23.74 / each
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

General Information

Item NameDeep Groove Radial Ball Bearing

Series6205

General Features

Net Weight0.132kg

Design & Construction

Cage MaterialPressed Steel
Enclosure TypeDouble Shield

Performance Details

Dynamic Load Capacity14800 N
Static Load Capacity7800 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter25 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter52 mm
Width15 mm
