MFR #:6006 2ZJEM
EIS #:6006ZZ04
Series #:6006
UPC #:07316576617812
MFR #:6006 2ZJEM
EIS #:6006ZZ04
Series #:6006
UPC #:07316576617812
Out of Stock
Min Qty:1
|Qty Increment:1

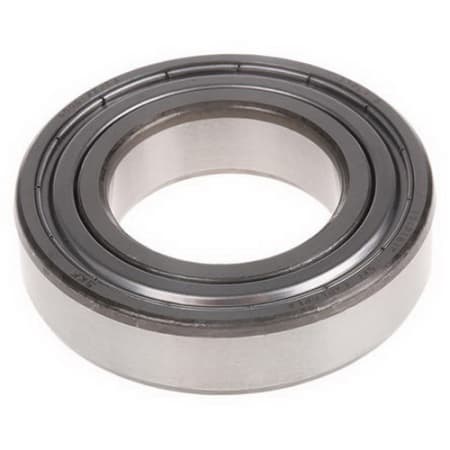

SKF 6000 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6000 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$28.95 / each
Min Qty:1
|Qty Increment:1
SKF 6000 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6000 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6006
General Features
Net Weight0.122kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity13800 N
Static Load Capacity8300 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter30 mm
Fillet Radius1 mm
Number of Rows1
Outside Diameter55 mm
Width13 mm
Features
- Comes with improved dimensions
- Generates 50% less noise
- Operational cost and maintenance are low
- Clearance: C3
- Temperature Rating: -40 to 100 °C
- Speed Rating: 14000 rpm Limiting, 28000 rpm Reference
Applications
- Can be Used In Fans, Pumps, Agriculture, Etc
