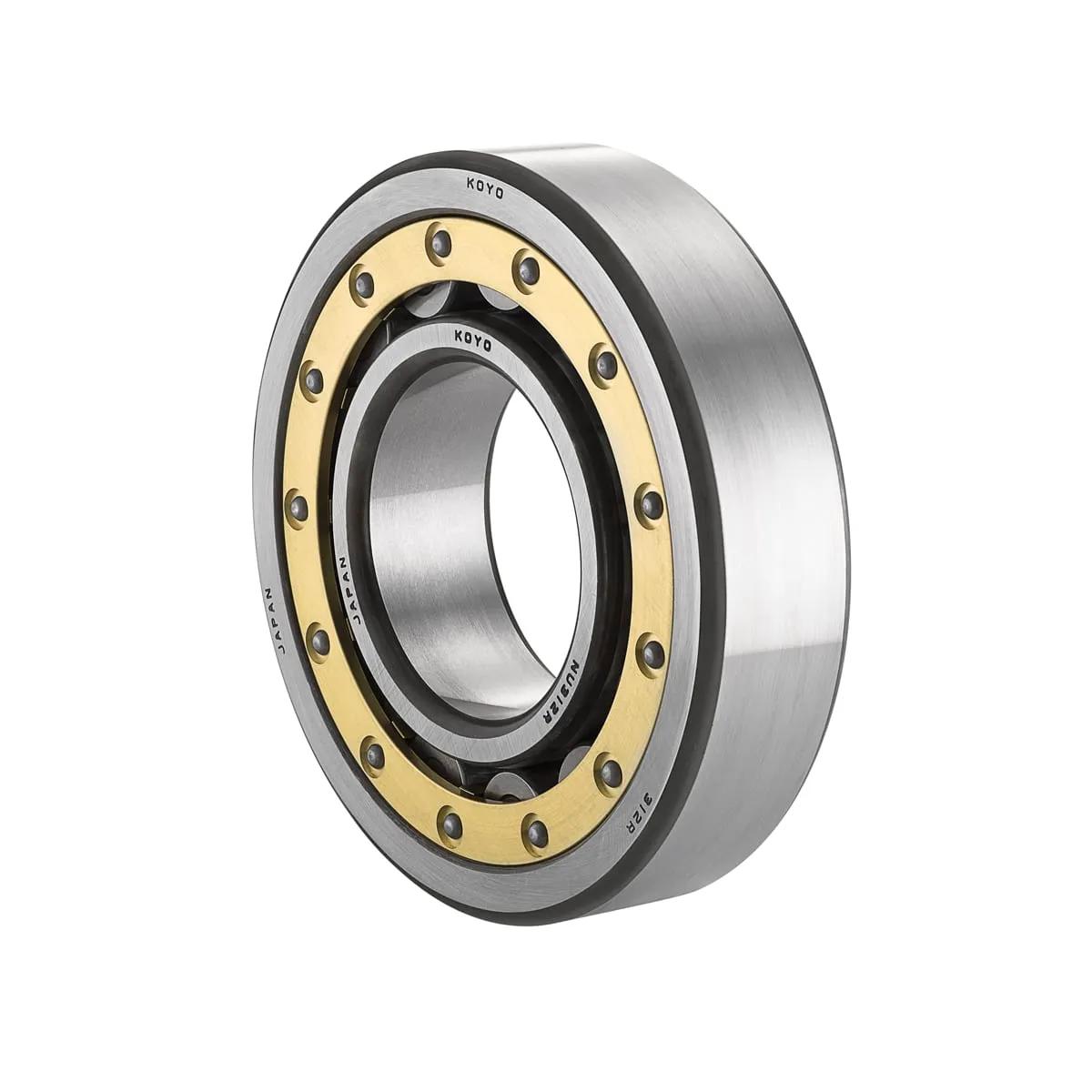

Koyo Bearings NJ216RC3 - Single Rib Inner Ring, 80 mm ID, 140 mm OD, 26 mm Width,C3 Internal Clearance, Machined Brass Cage, MPN KOY-NJ216RC3FY
- MFR #NJ216RC3FY
- EIS #NJ216RC3FY08
- UPC #605790145476
- Midpoint #KOY-NJ216RC3FY
$273.08 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Products You May Also Like
Single Rib Inner Ring, 80 mm ID, 140 mm OD, 26 mm Width,C3 Internal Clearance, Machined Brass Cage
Features
- Best used for high radial load applications
- Made from premium high carbon, high chromium Japanese steel
- Machined Brass (FY), Polymer (TVP,AG) and Steel Cages (no call out) are available
- Optional rib constructions available (NU, NJ, NUP styles)
- Maximum capacity option (E) is available on most sizes
General Information
| Item Name | Cylindrical Roller Bearings |
| Series | 200 |
General Features
| Net Weight | 3.432 lb |
Design & Construction
| Bore Type | Round |
| Cage Material | Brass |
| Cage Type | Machined |
| Lubrication Type | Rust Preventative |
| Material | 52100 |
| Raceway Style | Double Ribbed Outer Ring and Single Rib Inner Ring |
| Rolling Element | Cylindrical Roller |
| Rolling Element Material | 52100 |
| Row Type | Single row |
Performance Details
| Dynamic Load Capacity | 174 kn |
| Operating Temperature | -54 to 121 °C |
| Precision Class | P0 |
| Self Aligning | No |
| Speed Rating | 4400 rpm (Grease) | 5300 rpm (Oil) |
| Static Load Capacity | 167 kn |
Physical Properties
| Bore Diameter | 80 mm |
| Fillet Radius | 0.0787 Inch |
| Inside Diameter | 80 mm |
| Outside Diameter | 140 mm |
| Overall Width | 26 mm |
| Radial Internal Clearance | C3 |
| Width | 26 mm |
