MFR #:NU221G1C3
EIS #:NU221G101
Series #:nu221
UPC #:04547359140965
MFR #:NU221G1C3
EIS #:NU221G101
Series #:nu221
UPC #:04547359140965
Low Stock
Min Qty:1
|Qty Increment:1

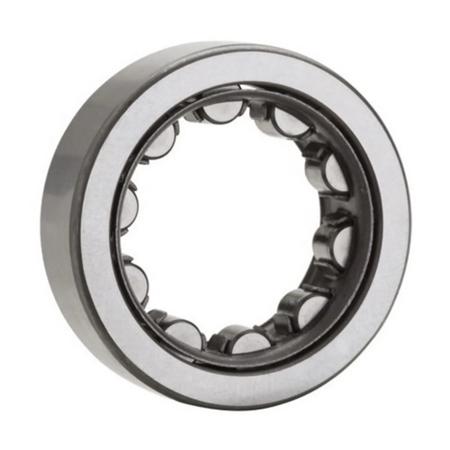

NTN NU2 Series single row cylindrical roller bearing.
NTN NU2 series cylindrical roller bearings have rollers that provide a modified line contact with the cylindrical inner and outer ring raceways, while the rollers are guided by ground ribs on either the inner or outer ring. The cylindrical shape allows the inner ring to have axial movement relative to the outer ring. This is especially important when accommodating thermal expansion, where both rings must be press-fitted.
$446.02 / each
Min Qty:1
|Qty Increment:1
NTN NU2 Series single row cylindrical roller bearing.
NTN NU2 series cylindrical roller bearings have rollers that provide a modified line contact with the cylindrical inner and outer ring raceways, while the rollers are guided by ground ribs on either the inner or outer ring. The cylindrical shape allows the inner ring to have axial movement relative to the outer ring. This is especially important when accommodating thermal expansion, where both rings must be press-fitted.
- Attributes
- Features
Attributes
General Information
Item NameCylindrical Roller Bearing
Trade NameNTN
Seriesnu221
General Features
TypeStandard Cage
Net Weight9.303 lb
Design & Construction
Bore TypeRound
Cage MaterialMachined Brass
Rolling Element MaterialHardened Alloy Steel
Performance Details
Dynamic Load Capacity201000 N
Static Load Capacity241000 N
Tolerance ClassRBEC 1 (Normal), RBEC 3 (P6)
Physical Properties
Bore Diameter105 mm
Fillet Radius2 mm
Inner Ring Outside Diameter126.8 mm
Number of Rows1
Outer Ring Inside Diameter249.6 mm
Outside Diameter190 mm
Radial Internal Clearance3 mm
Width36 mm
Features
- Straight inner ring with outer ring and roller assembly
- Radial clearance greater than normal
- Separable plain inner ring, outer ring with two ribs
- Clearance: C3
- Speed Rating: 3600 rpm Limiting (Grease), 4000 rpm Limiting (Oil)
- Temperature Rating: -40 to 120 °C (-40 to 250 °F)
