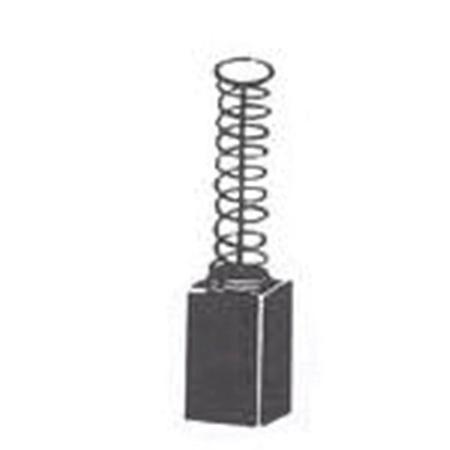

Helwig Electrographite H76 5/96 Concave Radius Carbon Brush
MFR #:Helwig Electrographite H76 Carbon Brush
EIS #:PH23-helwigelectrographiteh76carbonbrush-5/96
Series #:H76
MFR #:Helwig Electrographite H76 Carbon Brush
EIS #:PH23-helwigelectrographiteh76carbonbrush-5/96
Series #:H76
Electrographites are the most common grades used on modern equipment with good performance at high voltages, high current densities and high speeds. There is a wide range of characteristics within this category. Most electrographite grades are capable of handling overloads well. - Helwig Electrographite H76 5/96 Concave Radius Carbon Brush.
$7.97
- $14.52
Select from the options below
Electrographites are the most common grades used on modern equipment with good performance at high voltages, high current densities and high speeds. There is a wide range of characteristics within this category. Most electrographite grades are capable of handling overloads well. - Helwig Electrographite H76 5/96 Concave Radius Carbon Brush.
Product Options
Showing 1 out of 1 options
 | Width: 0.25 Inch | Brush Length: 0.625 Inch | Shunt Length: 1.375 Inch | EIS Part #: 213 BRUSH | $ / each |
- Attributes
- Features
Attributes
General Information
Item NameCarbon Brush
SeriesH76
Design & Construction
GradeH76
MaterialElectrographite
Electrical Properties
Amperage Rating80 A/sq-Inch
Physical Properties
Thickness0.25 Inch
Concave Radius5/96
Features
- 2400 psi strength
- 0.0030000 ohm-Inch resistivity
- 65 shore hard
