$735.09 / 1000Piece
Pack: 500/Pack
Available to Order
Min QTY1QTY Increment1
more info
Pack500/PackProducts You May Also Like

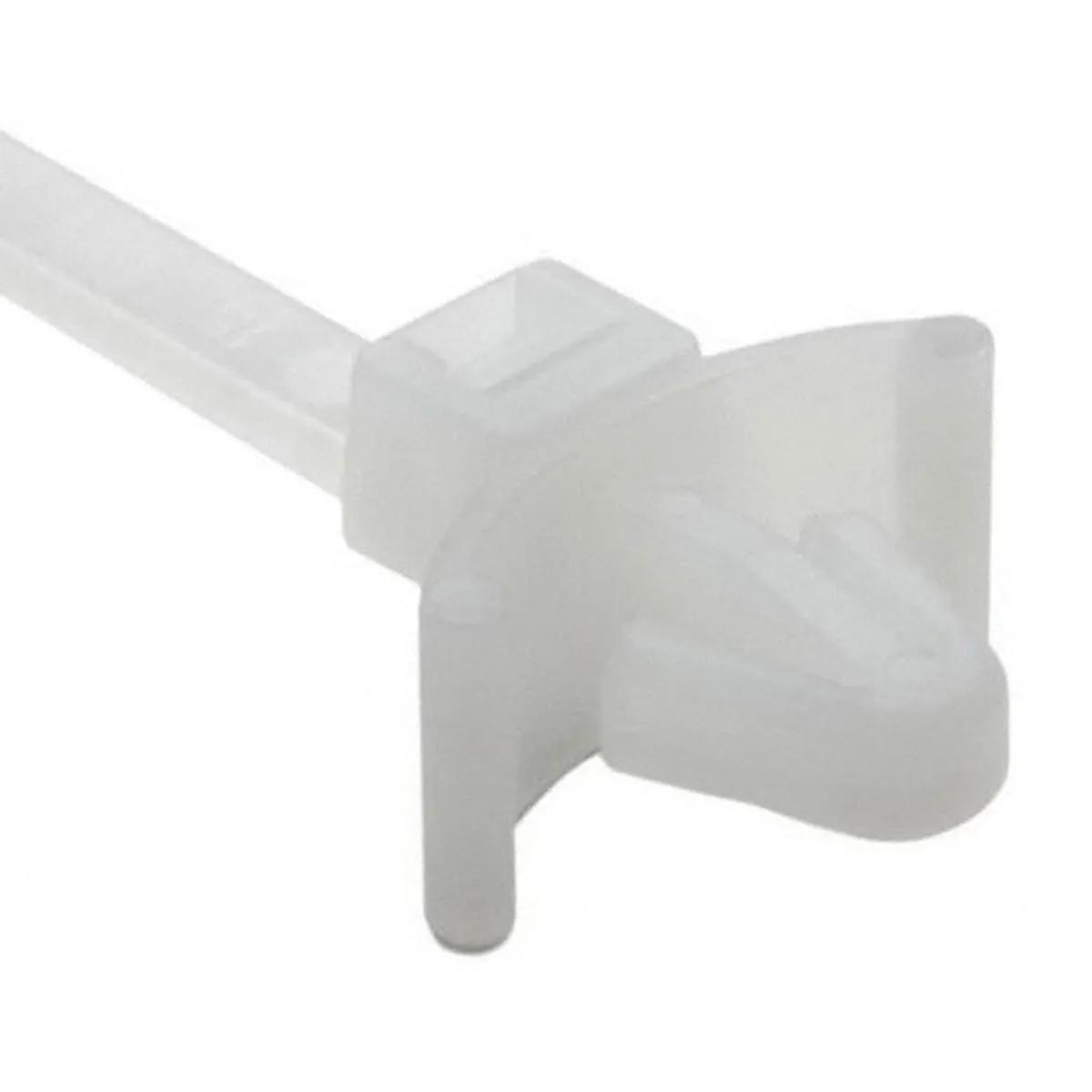

Wing design helps stabilize the tie in high vibration applications. Includes a ladder type strap as opposed to a conventional serrated strap, providing the benefit of being extra flexible. Design of tie provides low insertion and high extraction force. 0.25 - 0.3 Inch mounting hole diameter. - Wing push mount tie's supporting legs ensure a firm and secure fixing for bundles. These legs also reduce vibration in panel thickness enabling one part to suit many different applications such as sheet metal, wood and cast iron.
Features
- 0.03 - 0.1 Inch panel thickness
Applications
- For Sheet Metal, Wood, Cast Iron and High Vibration Applications
General Information
| Item Name | Cable Tie |
General Features
| Type | Wing |
| Standards | UL94 HB, cULus, cRUus Listed, RoHS Compliant |
Design & Construction
| Color | Natural |
| Locking Mechanism | Self Locking |
| Material | Polyamide 6.6 |
| Mounting | Push |
Performance Details
| Operating Temperature | -40 to 185 °F |
| Tensile Strength | 50 lb |
Physical Properties
| Bundle Diameter | 0.06 - 1.3 Inch |
| Head Height | 0.39 Inch |
| Head Width | 0.72 Inch |
| Length | 6.5 Inch |
| Thickness | 0.03 Inch |
| Width | 0.18 Inch |
Documents
No Documents Found
