HellermannTyton MB4SH10C2 2-Way Polyamide Cable Tie Mounting Base, 1.12" L x 1.12" W x 0.2" H, White, 100/Pack
- EIS #MB4SH10C2
- Series #MB4SH
- UPC #00089306024750
$180.71 / Package
Pack: 100/Pack
Available to Order
Min QTY1QTY Increment1more infoPack100/Pack

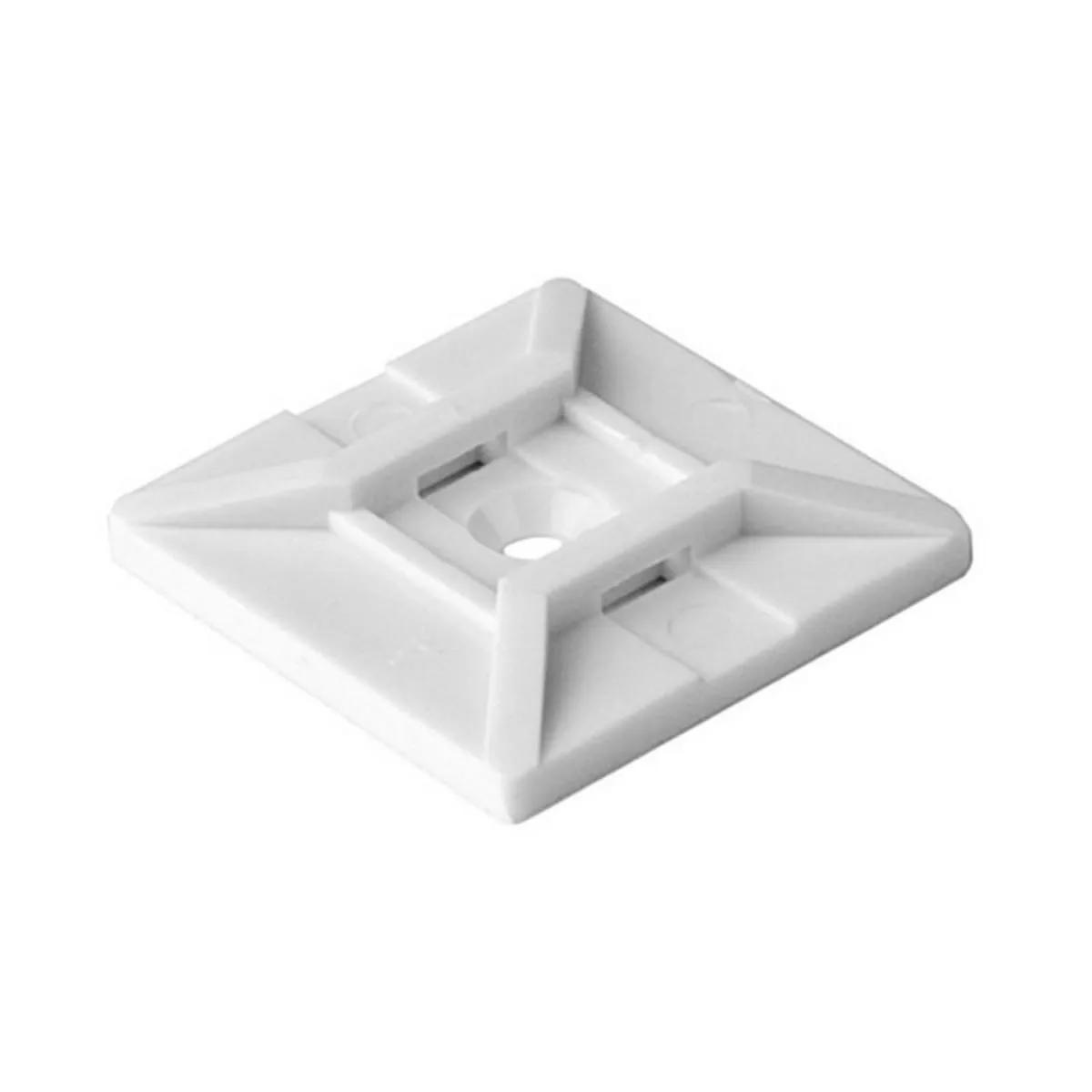

HellermannTyton's 2-way, screw fastened mounting base is used with 18 through 50 lb cable ties to provide stability when securing bundles. The mounts are installed by securing one screw through the center of the mount. - HellermannTyton MB4SH Series 2-Way Opening Screw Fastened Cable Tie Mounting Base, Length: 1.12 Inch, Width: 1.12 Inch, Height: 0.2 Inch, Material: Polyamide 6.6, White, Hole Size: 0.15 Inch Dia, #6 Screw and Rivet Mounting, Temperature Rating: -40 to 185 °F, For Use With: 0.18 Inch Width T18-T50 Cable Ties.
General Information
| Item Name | Cable Tie Mounting Base |
| Series | MB4SH |
General Features
| Type | 2-Way Opening, Screw Fastened |
| Standards | UL94 V-2 Listed, RoHS Compliant |
Design & Construction
| Color | White |
| Material | Polyamide 6.6 |
| Mounting | #6 Screw and Rivet |
Performance Details
| Operating Temperature | -40 to 185 °F |
Physical Properties
| Dimensions | 1.12 Inch x 1.12 Inch x 0.2 Inch |
| Hole Size | 0.15 Inch |
Supporting Information
| For Use With | 0.18 Inch Width T18-T50 Cable Ties |
