$135.46 - $267.59
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
| 0.75 Inch x 0.75 Inch x 0.19 Inch | 100/Pack | White | $ / Package Pack: 100/Pack | ||
| 0.75 Inch x 0.75 Inch x 0.18 Inch | 1000/Pack | Black | $ / Piece Pack: 1000/Pack |

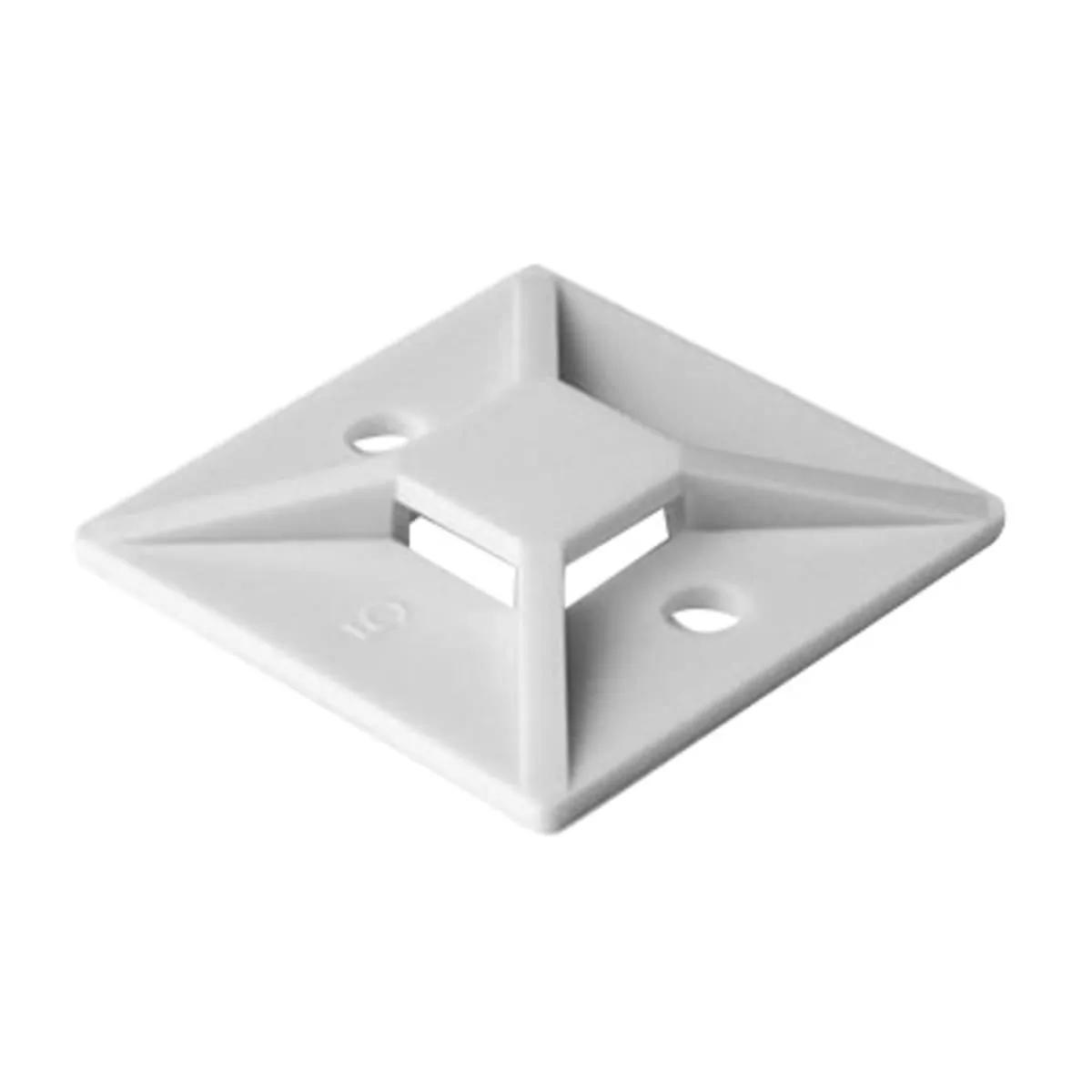

HellermannTyton adhesive fastened mounting bases are used with 18 through 150 lb cable ties to provide stability when securing bundles. The mounts are installed using the adhesive backing and/or by securing two or four screws. - The 4 way opening allows the cable ties to be inserted parallel or perpendicular to the wire bundles.
Features
- For use with 18 and 30 lb cable ties to provide stability when securing bundles
- Secures with acrylic based adhesive backing for heavy bonding applications
- Can also be secured using two or four screws, providing multiple options
- 4-way entry allowing the cable tie to secure bundles running parallel or perpendicular
- 0.12 Inch dia x 0.52 Inch center of hole
Applications
- For Heavy Bonding Applications
General Information
| Item Name | Cable Tie Mount |
| Series | MB3A |
General Features
| Type | 4-Way Opening |
| Standards | UL94 V-2 Listed, RoHS Compliant |
Design & Construction
| Material | Polyamide 6.6 |
| Mounting | Adhesive |
Performance Details
| Operating Temperature | -40 to 185 °F |
Physical Properties
| Hole Size | 0.12 Inch |
Supporting Information
| For Use With | 0.14 Inch Width T18-T30 Cable Ties |
