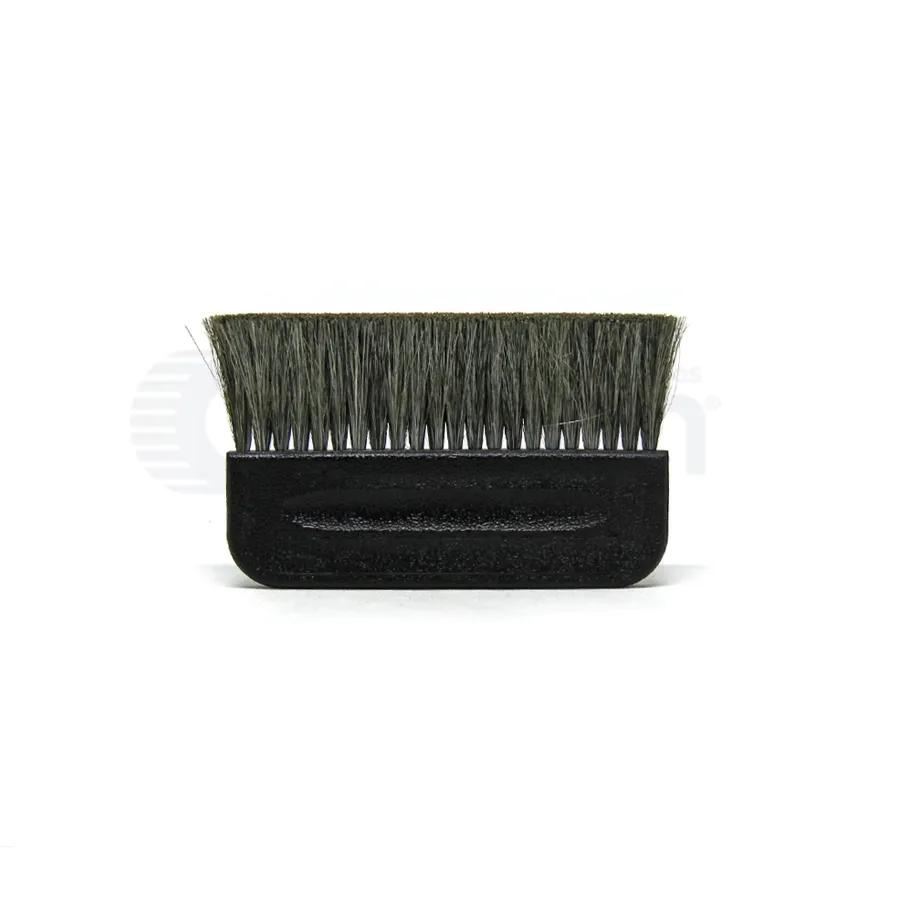

Gordon Brush 900437G Thunderon and Goat Hair Conductive Short Handle Brush 1 x 22 Row

Gordon Brush 900437G Thunderon and Goat Hair Conductive Short Handle Brush  1 x 22 Row
  • MFR #:900437G
  • EIS #:900437G-GOR
  • MFR #:900437G
  • EIS #:900437G-GOR
Available to Order

Min Qty:1

  |

Qty Increment:1

0
0
This conductive brush has Thunderon® and goat hair mixed fill material set within a conductive polypropylene plastic handle. Ideal for cleaning and dusting areas that are sensitive to static electricity where the promotion of corona discharge is required. This high-quality brush has a 1 x 22 row pattern, with a 1-1/4" trim, and a brush face of 3-1/2" x 3/8". The handle is 4" long x 3/8" wide x 1-1/4" high. Thunderon® is a very fine (0.0015" diameter) conductive acrylic fiber that is chemically bonded with copper sulfide. This high-performance fiber will dissipate a charge on any electrically charged surface. The fineness of the fiber lends itself to be used in applications that require non-contact corona discharge on static-charged surfaces. The surface resistivity of Thunderon® is 10²Ω/cm. The goat hair mix adds stiffness to the brush. The plastic handle is conductive with a surface resistivity of 10⁴Ω/cm
$34.30 / Piece

Min Qty:1

  |

Qty Increment:1

0
0
This conductive brush has Thunderon® and goat hair mixed fill material set within a conductive polypropylene plastic handle. Ideal for cleaning and dusting areas that are sensitive to static electricity where the promotion of corona discharge is required. This high-quality brush has a 1 x 22 row pattern, with a 1-1/4" trim, and a brush face of 3-1/2" x 3/8". The handle is 4" long x 3/8" wide x 1-1/4" high. Thunderon® is a very fine (0.0015" diameter) conductive acrylic fiber that is chemically bonded with copper sulfide. This high-performance fiber will dissipate a charge on any electrically charged surface. The fineness of the fiber lends itself to be used in applications that require non-contact corona discharge on static-charged surfaces. The surface resistivity of Thunderon® is 10²Ω/cm. The goat hair mix adds stiffness to the brush. The plastic handle is conductive with a surface resistivity of 10⁴Ω/cm

Attributes

General Information

Item NameBrush

Design & Construction

Bristle MaterialThunderon/Goat Hair
Handle MaterialPlastic
ESD SafeYes

Physical Properties

Handle Size4 inch x 1-1/4 inch
Trim Size1-3/8 inch
Brush Thickness3/8 inch
Handle Length4 Inch
