Leeson 175698 Brake Kit, For 3 HP Maxixmum at 1725 rpm 182-4T NEMA Frame Motors, MFR ID 91423
- MFR #LeesonElectricBrakeKit
- EIS #MOT175698
$2,528.70 / each
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | ||||
|---|---|---|---|---|
 | MOT175697 | 5 HP Maxixmum at 1725 rpm 182-4T NEMA Frame Motors | $ / each | |
| MOT175699 | 3 HP Maxixmum at 1725 rpm 182-4T NEMA Frame Motors | $ / each | |
| MOT175698 | 3 HP Maxixmum at 1725 rpm 182-4T NEMA Frame Motors | $ / each |

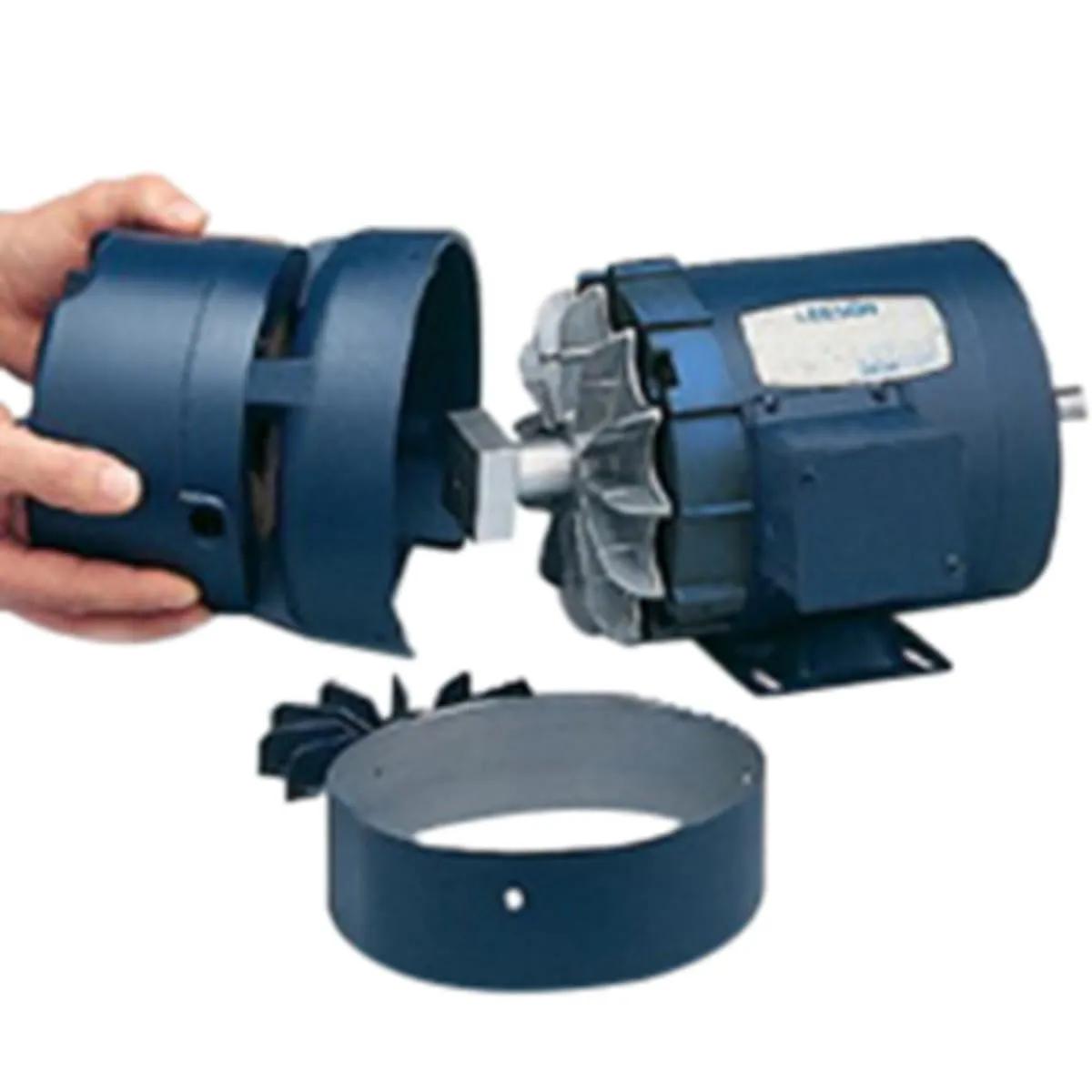

Leeson Electric Brake Kit.
Leeson Lincoln™ Brake Kit.
Features
- Kit of components to convert 56 through 256T frame stock TEFC motors to fail-safe brake motors
- Kit mounts on fan end of motor
- Shaft extension
- Fan and hardware
- (2) 1/2 Inch NPT holes with 18 Inch leads are provided for connections
- The brake kit adds 5-1/8 Inch to the overall length of 56 and 143-5T frame, and 5-7/8 Inch to the overall length of 182-184T frame
- B disc symbol
- 15 ft-lb brake rating
- 575V brake coil voltage
General Information
| Item Name | Brake Kit |
| Trade Name | leeson electric |
General Features
| Net Weight | 12 lb |
Supporting Information
| For Use With | 3 HP Maxixmum at 1725 rpm 182-4T NEMA Frame Motors |
| OEM ID | MOT175698 |
| Use With | 3 HP Maxixmum at 1725 rpm 182-4T NEMA Frame Motors |
Documents
No Documents Found
