EIS #:3M06394X.5
UPC #:00051131063945
EIS #:3M06394X.5
UPC #:00051131063945
Out of Stock
Min Qty:1
|Qty Increment:1
Pack:12 Box/Case
more info

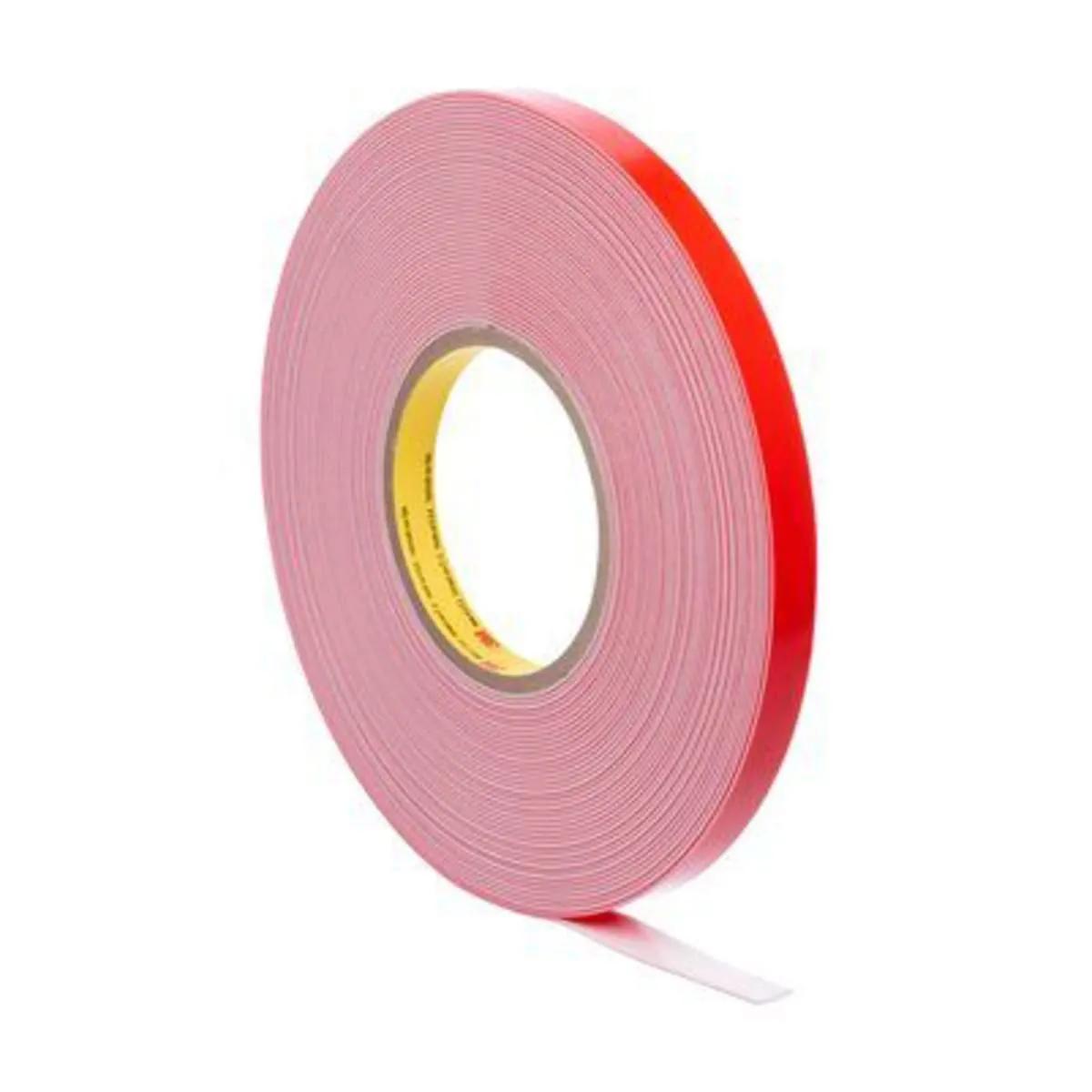

3M™ Automotive Attachment Tape 06394 is a good choice for attaching heavier automotive trim and parts such as spoilers and running boards. It features a thick .090 (2.28 mm) closed-cell acrylic foam core that delivers strength and conformability on contoured surfaces. A high performance plasticizer-resistant acrylic adhesive is applied to both sides, and delivers high peel and shear adhesion. - 3M tape 06394 is OEM approved for the most demanding trim attachment applications where bonding surface contours may be poorly matched and/or a thick foam is required. Its thick, gray, high strength core offers unique viscoelastic properties that allow it to elongate and relax when put under load, thereby minimizing stress at the adhesive bond line.
Requires Quote / Roll
Min Qty:1
|Qty Increment:1
Pack:12 Box/Case
more info
3M™ Automotive Attachment Tape 06394 is a good choice for attaching heavier automotive trim and parts such as spoilers and running boards. It features a thick .090 (2.28 mm) closed-cell acrylic foam core that delivers strength and conformability on contoured surfaces. A high performance plasticizer-resistant acrylic adhesive is applied to both sides, and delivers high peel and shear adhesion. - 3M tape 06394 is OEM approved for the most demanding trim attachment applications where bonding surface contours may be poorly matched and/or a thick foam is required. Its thick, gray, high strength core offers unique viscoelastic properties that allow it to elongate and relax when put under load, thereby minimizing stress at the adhesive bond line.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameAutomotive Tape
Series06394
General Features
TypeAttachment
Design & Construction
Adhesive TypeAcrylic
Applicable MaterialRIM, TPO, PPO, PP, PC, PC+ABS
ColorGray/Red Liner
Physical Properties
Core Size3 Inch
Length10 Yard
Thickness0.09 Inch
Width0.5 Inch
Supporting Information
Applicable MaterialsRIM, TPO, PPO, PP, PC, PC+ABS
Features
- Superior adhesion build rate to automotive substrates
- Conformable core gives excellent wet out (tape contact) on mismatched surfaces
- High strength core absorbs and dissipates stress on bond line
Applications
- For Reliable Attachment of a Wide Variety of Automotive Exterior and Interior Trim Including Running Boards, Ground Effects, Claddings, Rocker Panel Moldings, Spoilers, Wheel Flares, Bumper Trim and other Larger or Heavier Automotive Trim Components
