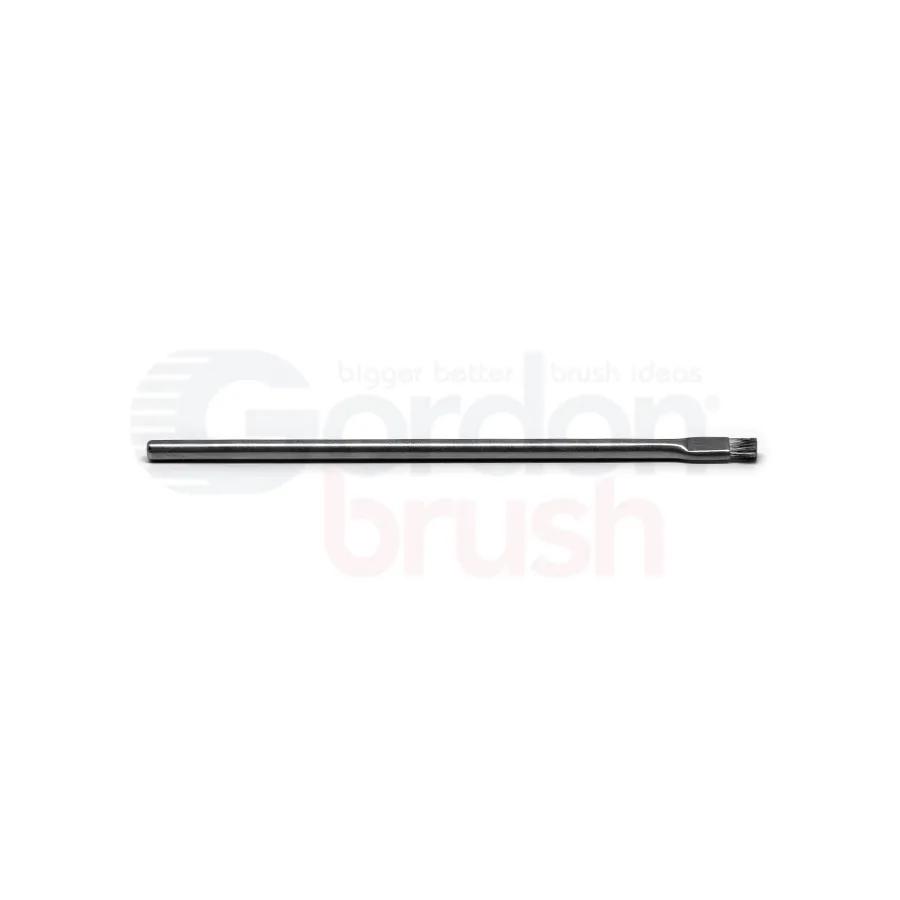

Gordon Brush SST2SSG-12 Applicator Brush 1/8" Diameter, .003" Stainless Steel, 1/8" Trim and Stainless Steel Handle

  • MFR #SST2SSG-12
  • EIS #SST2SSG-12-GOR
$14.49 / Piece
Available to Order
Min QTY1QTY Increment1more info

This conductive applicator brush has 0.003" stainless steel wire and a lightweight, chemical resistant, non-magnetic, stainless steel handle. All components of this brush are FDA and RoHS compliant. This high quality brush has a trim of 1/8", handle dimensions of 3-1/2" length x 1/8" diameter, brush width of 3/16". This brush has a maximum use temperature of 900°F. For other brush size options within this series using 0.003" stainless steel wire, see parts: SST6SS, SST10SS, SST12SS. Conductive brushes have a surface resistivity range of 10²Ω/cm – 10⁴Ω/cm and are used to remove static buildup from the work surface. Conductive brushes will act as a conduit between the charged surface and the path to ground. Made with fully conductive materials that are active static eliminators. Use conductive brushes with a wrist strap or other mechanism to provide a path to ground

General Information

Item NameApplicator Brush

Design & Construction

Bristle MaterialStainless Steel
Handle MaterialStainless Steel
ESD SafeYes

Physical Properties

Bristle Diameter0.003 inch
Handle Size3-1/2 inch
Trim Size1/8 inch
Handle Length3-1/2 inch
