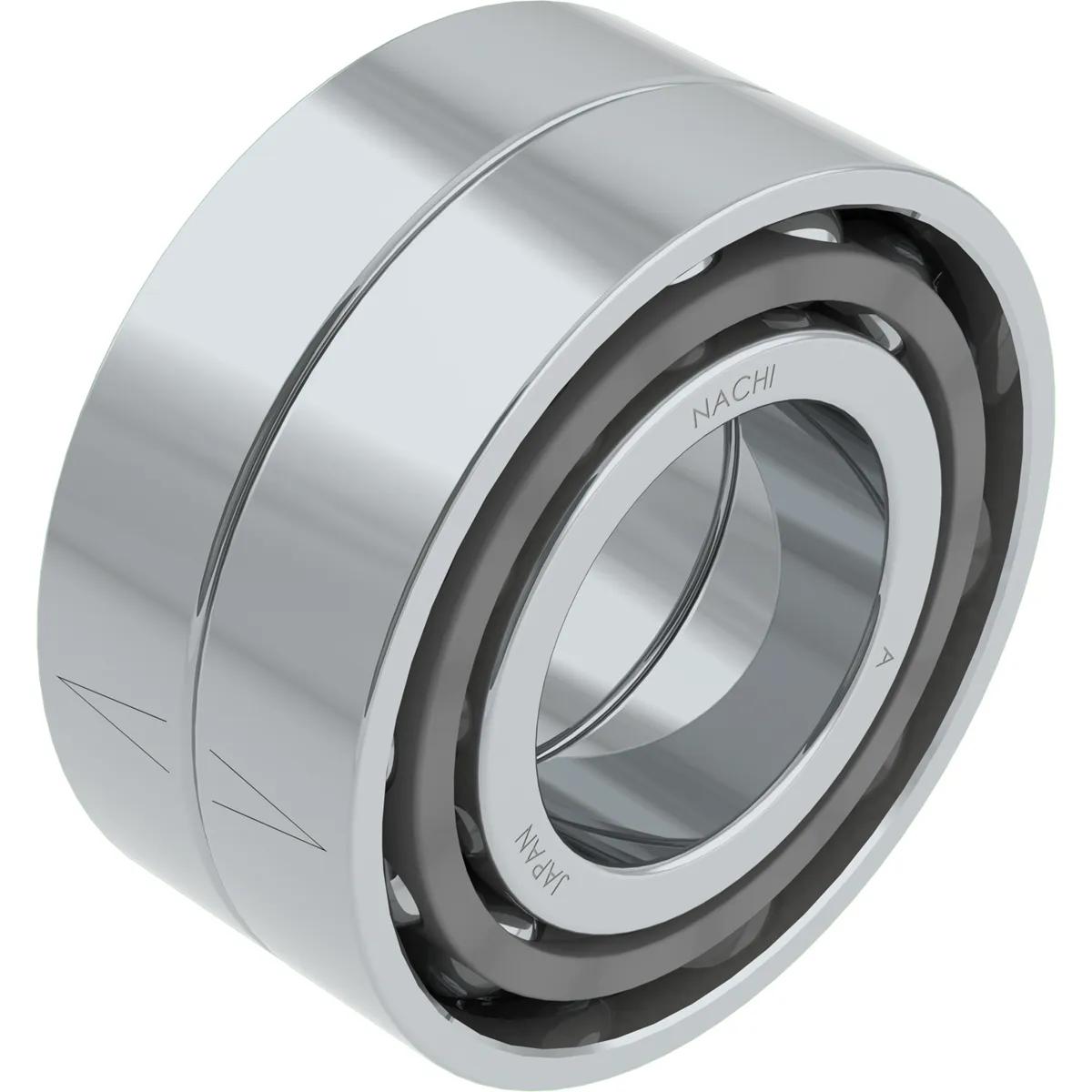

Nachi 7005CYDU/GMP4BNLS - 7000 Series Angular Contact Precision Brg, MFR ID NAC-7005CYDUP4
- MFR #7005CYDUP4
- EIS #7005CYDUP4BNLS02
- UPC #4991893828085
- Midpoint #NAC-7005CYDUP4
$329.76 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Precision Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft. A contact angle of 15° is best for high speed, while a contact angle of 25° is better for axial loads.
Features
- With angular contact ball bearings, the balls and the inner ring and outer ring raceways form a specific angle of contact
- When used in a single configuration, axial load is limited to a single direction, this type of bearing is suitable for bearing composite loads made up of axial and radial loads
- Since this type of bearing has a contact angle, axial components are generated when a radial load is applied
- Becasue of this, this type of bearing is normally used in pairs at either end of a shaft.
General Information
| Item Name | Angular Contact Precision Bearing |
General Features
| Net Weight | 0.4 lb |
Design & Construction
| Bore Type | Cylindrical |
| Cage Material | PA66 Polyamide Resin |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
Performance Details
| Contact Angle | 15° |
| Dynamic Load Capacity | 21200 N |
| Operating Temperature | 120 °C (248 °F) |
| Precision Class | P4 |
| Speed Rating | 20500 rpm (Grease) | 26800 rpm (Oil) |
| Static Load Capacity | 17300 N |
Physical Properties
| Bore Diameter | 25 mm |
| Outside Diameter | 47 mm |
| Overall Width | 12 (24) mm |
