JTEKT Bearings 7211C-5GL - Single Row, Universal Ground, 15 Degree Contact Angle, 55 mm ID, 100 mm OD, 21 mm Width, Polyamide Resin Cage, MFR ID KOY-7211C-5GLFGP4

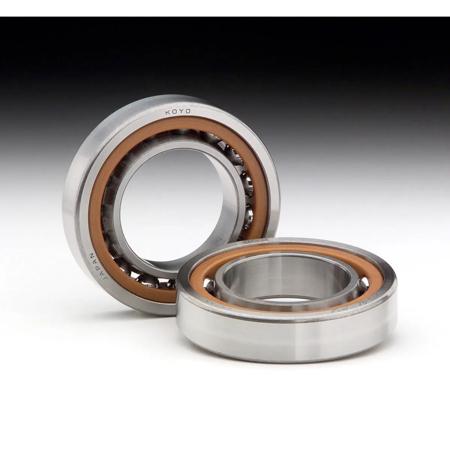

The image shown is representative of the product family and may not specifically be the individual item. 7211C-5GL -ABEC 7 Precision Angular Contact Bearing, Single Row
  • MFR #:7211C-5GLFGP4
  • EIS #:7211C-5GLFGP408
  • UPC #:605790092732
  • Midpoint #:KOY-7211C-5GLFGP4
  • MFR #:7211C-5GLFGP4
  • EIS #:7211C-5GLFGP408
  • UPC #:605790092732
  • Midpoint #:KOY-7211C-5GLFGP4
Available to Order

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
7211C-5GL -ABEC 7 Precision Angular Contact Bearing, Single Row
$428.78 / Piece

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
7211C-5GL -ABEC 7 Precision Angular Contact Bearing, Single Row

Attributes

General Information

Item NameAngular Contact Bearings

Series7200

General Features

Net Weight1.396 lb

Design & Construction

Bore TypeCylindrical
Cage MaterialBrass
Cage TypeMachined
Lubrication TypeRust Preventative
Material52100
Mounting TypeSingle
Retainer MaterialNylon
Retainer TypeWindow
Rolling ElementBall
Rolling Element MaterialBall
Row TypeSingle row

Performance Details

Contact Angle15°
Dynamic Load Capacity66.1 kn
Operating Temperature-54 to 121 °C
Precision ClassClass 4
Self AligningNo
Speed Rating11000 rpm (Grease) | 14000 rpm (Oil)
Static Load Capacity40.2 kn

Physical Properties

Bore Diameter55 mm
Fillet Radius0.0591 Inch
Number of Bearings1
Outside Diameter100 mm
Overall Width21 mm
Radial Internal ClearanceL - Light Preload
