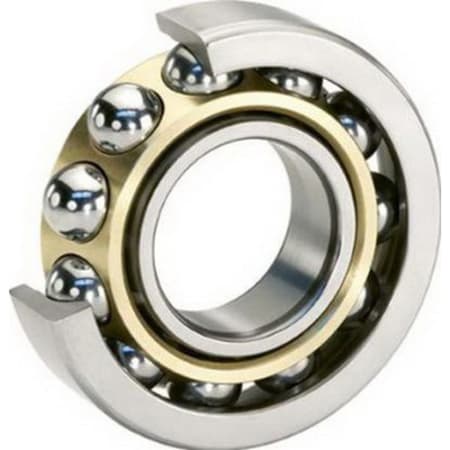

SKF 7330 BCBM Single Row Angular Contact Ball Bearing, 40 deg, 150 mm Bore x 320 mm OD x 65 mm W, Machined Brass
- MFR #7330 BCBM
- EIS #7330BCBM04
- Series #7330
- UPC #07316576651137
$5,731.06 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1more info
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.
Features
- Made up of high-quality ultra steel which enhances life up to 80%
- Consists of top quality balls which results in smooth and quiet operation
- Specially designed to minimize noise
- Non-fill slot
General Information
| Item Name | Angular Contact Ball Bearing |
| Series | 7330 |
General Features
| Net Weight | 26kg |
Design & Construction
| Cage Material | Machined Brass |
| Enclosure Type | Open |
Performance Details
| Contact Angle | 40 deg |
| Dynamic Load Capacity | 332000 N |
| Static Load Capacity | 390000 N |
| Tolerance Class | P6, P5 |
Physical Properties
| Bore Diameter | 150 mm |
| Fillet Radius | 3 mm |
| Number of Rows | 1 |
| Outside Diameter | 320 mm |
| Width | 65 mm |
