SKF 7319 BECBM Single Row Angular Contact Ball Bearing, 40 deg, 95 mm Bore x 200 mm OD x 45 mm W, Machined Brass

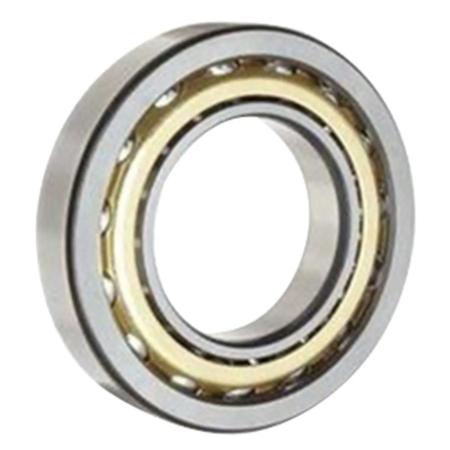

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:7319 BECBM
  • EIS #:7319BECBM04
  • Series #:7319
  • UPC #:07316577151223
  • MFR #:7319 BECBM
  • EIS #:7319BECBM04
  • Series #:7319
  • UPC #:07316577151223
In Stock | Ready to Ship

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.
$1,433.21 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.

Attributes

General Information

Item NameAngular Contact Ball Bearing

Series7319

General Features

Net Weight6.05kg

Design & Construction

Cage MaterialMachined Brass
Enclosure TypeOpen

Performance Details

Contact Angle40 deg
Dynamic Load Capacity180000 N
Static Load Capacity163000 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter95 mm
Fillet Radius2.5 mm
Number of Rows1
Outside Diameter200 mm
Width45 mm
