SKF 7309BECBY Single Row Angular Contact Ball Bearing, 40 deg, 45 mm Bore x 100 mm OD x 25 mm W, Pressed Brass

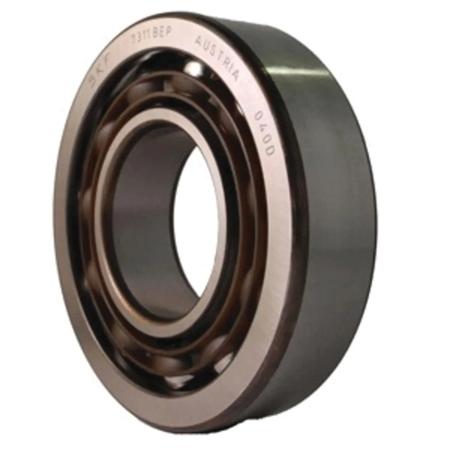

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:7309 BECBY

EIS #:7309BECBY04

Series #:7309

UPC #:07316576650628

MFR #:7309 BECBY

EIS #:7309BECBY04

Series #:7309

UPC #:07316576650628

Low Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.
$193.94 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 7300 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7300 Single Row Angular Contact Ball Bearing.

Attributes

General Information
Item NameAngular Contact Ball Bearing
Series7309
General Features
Net Weight1.91  lb
Design & Construction
Cage MaterialPressed Brass
Enclosure TypeOpen
Performance Details
Contact Angle40 deg
Dynamic Load Capacity13600.9 lbf
Static Load Capacity9329.5 lbf
Tolerance ClassP6, P5
Physical Properties
Bore Diameter45 mm
Fillet Radius0.0591 Inch
Number of Rows1
Outside Diameter100 mm
Width25 mm
