MFR #:7238 BCBM
EIS #:7238BCBM04
Series #:7238
UPC #:07316570323276
MFR #:7238 BCBM
EIS #:7238BCBM04
Series #:7238
UPC #:07316570323276
Out of Stock
Min Qty:1
|Qty Increment:1

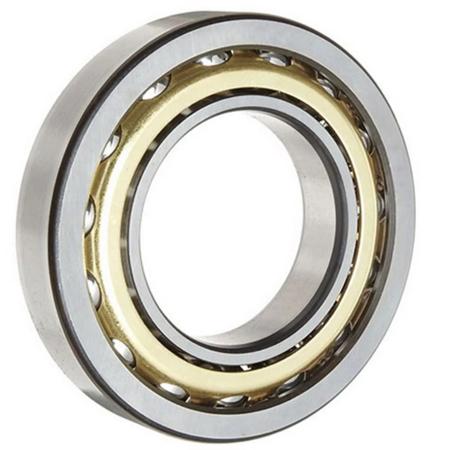

SKF 7200 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7200 Single Row Angular Contact Ball Bearing.
$7,136.07 / Piece
Min Qty:1
|Qty Increment:1
SKF 7200 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7200 Single Row Angular Contact Ball Bearing.
- Attributes
- Features
- Documents
Attributes
General Information
Item NameAngular Contact Ball Bearing
Series7238
General Features
Net Weight22kg
Design & Construction
Cage MaterialMachined Brass
Enclosure TypeOpen
Performance Details
Contact Angle40 deg
Dynamic Load Capacity307000 N
Static Load Capacity405000 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter190 mm
Fillet Radius3 mm
Number of Rows1
Outside Diameter340 mm
Width55 mm
Features
- Made up of high-quality ultra steel which enhances life up to 80%
- Consists of top quality balls which results in smooth and quiet operation
- Specially designed to minimize noise
- Non-fill slot
