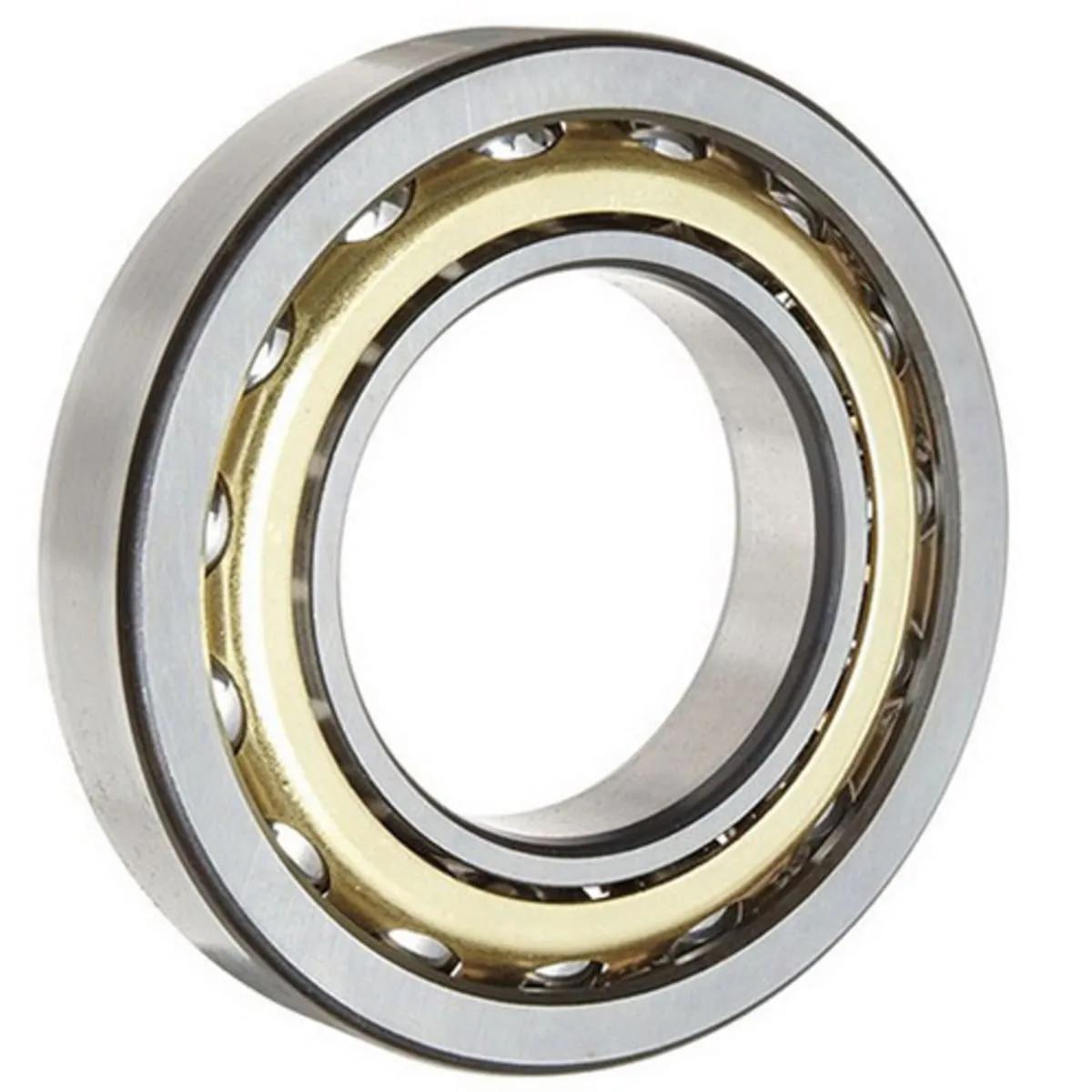

The image shown is representative of the product family and may not specifically be the individual item.
0

SKF 7210BECBM Single Row Angular Contact Ball Bearing, 40 deg, 50 mm Bore x 90 mm OD x 20 mm W, Machined Brass, MFR ID 7210 BECBM

  • MFR #7210 BECBM
  • EIS #7210BECBM04
  • Series #7210
  • UPC #07316576633201
$238.59 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SKF 7200 single row angular contact ball bearings can accommodate axial loads in one direction only. A single row bearing is typically adjusted against a second bearing. The bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity. - SKF 7200 Single Row Angular Contact Ball Bearing.

General Information

Item NameAngular Contact Ball Bearing

Series7210

General Features

Net Weight1.03  lb

Design & Construction

Cage MaterialMachined Brass
Enclosure TypeOpen

Performance Details

Contact Angle40 deg
Dynamic Load Capacity6969 lbf
Static Load Capacity6969 lbf
Tolerance ClassP6, P5

Physical Properties

Bore Diameter50 mm
Fillet Radius0.0394 Inch
Number of Rows1
Outside Diameter90 mm
Width20 mm
