Timken Fafnir 5319WBRT Ball Angular Contact Double Row | 95 mm 3.7 in Bore | 200 mm 7.9 in OD, MFR ID TIM-5319WBR

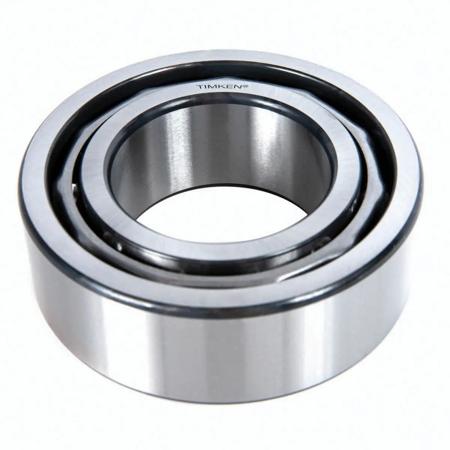

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:5319WBR
  • EIS #:5319WBRT
  • UPC #:87796068179
  • Midpoint #:TIM-5319WBR
  • MFR #:5319WBR
  • EIS #:5319WBRT
  • UPC #:87796068179
  • Midpoint #:TIM-5319WBR
Available to Order

Min Qty:1

  |

Qty Increment:1

Timken
Timken
Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.
$2,271.23 / Piece

Min Qty:1

  |

Qty Increment:1

Timken
Timken
Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.

Attributes

General Information

Item NameAngular Contact Ball Bearing

Series5300

General Features

Net Weight25.49 lb
TypeBall Bearing

Design & Construction

Bore TypeStraight
Cage TypeBall
Closure TypeOpen
MaterialSteel
Retainer MaterialSteel
Retainer TypeBall
Rolling ElementBall
Row TypeDouble

Performance Details

Contact Angle30°
Dynamic Load Capacity72900 lb
Operating Temperature-50 °C To 120 °C
Precision ClassABEC-1
Speed Rating51726.5458909294 rpm (Oil) | 43105.4549091078 rpm (Grease)
Static Load Capacity72800 lb

Physical Properties

Bore Diameter3.7402 Inch | 95.00108 mm
Fillet Radius0.118 Inch | 2.9972 mm
Number of Bearings1
Outside Diameter7.874 Inch | 199.9996 mm
Overall Width3.063 Inch | 77.8002 mm
