MFR #:950
EIS #:PH22-950
MFR #:950
EIS #:PH22-950

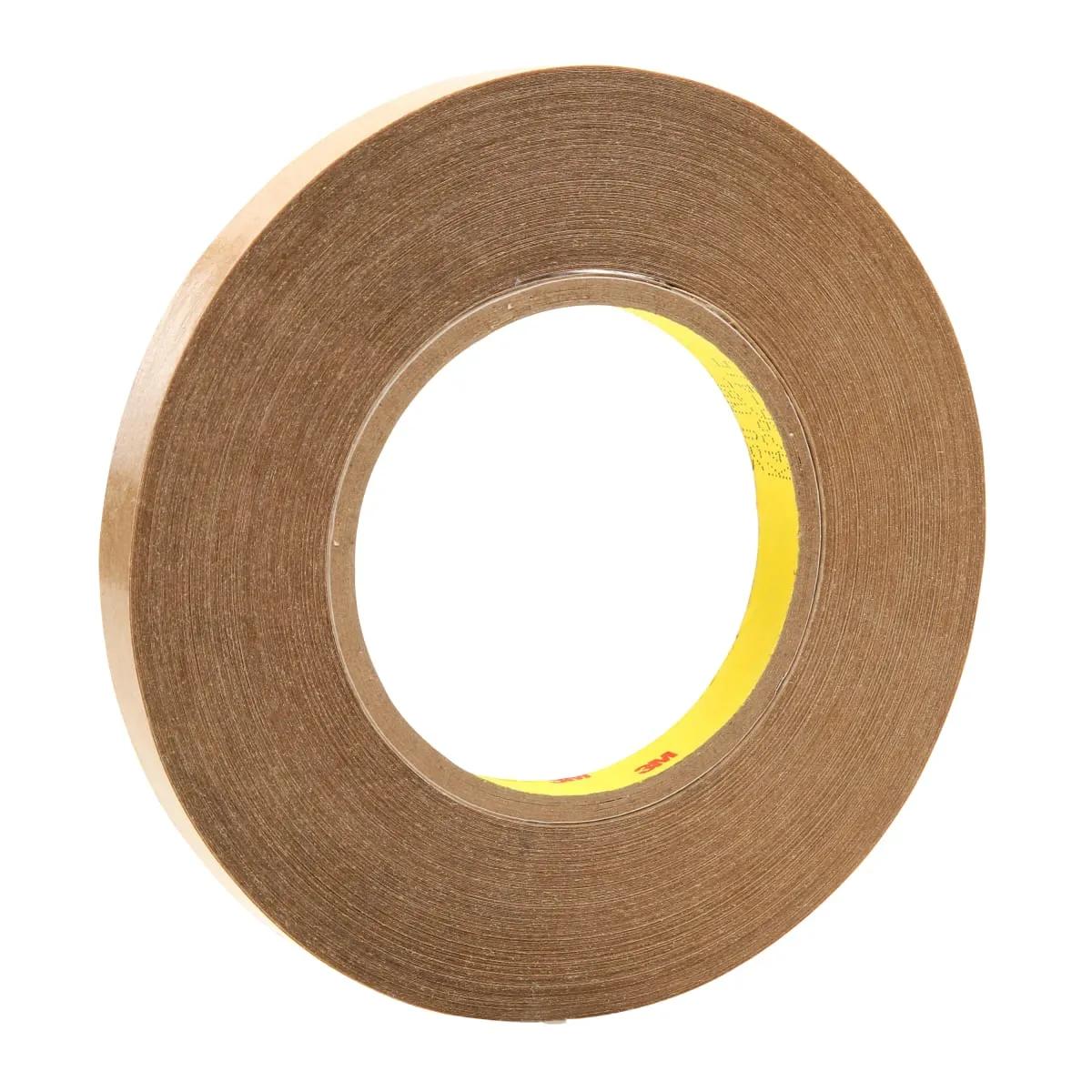

3M 950 clear transfer tape comes acrylic adhesive and can be used in the following temperature range -40 to 250 °F. The variances in thickness often make an important difference in proper performance. Good UV, chemical resistance. - This transfer tape has a 5 Mil thick. Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. The liner material for this product is composed of densified kraft paper.
$30.28
- $157.48
Select from the options below
3M 950 clear transfer tape comes acrylic adhesive and can be used in the following temperature range -40 to 250 °F. The variances in thickness often make an important difference in proper performance. Good UV, chemical resistance. - This transfer tape has a 5 Mil thick. Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. The liner material for this product is composed of densified kraft paper.
Product Options
Showing 8 out of 8 options
Width: 4 Inch | EIS Part #: 3M950X4 | $ / Roll Pack: 8/Case | ||
Width: 2 Inch | EIS Part #: 3M950X2 | $ / Roll Pack: 24/Case | ||
Width: 1.5 Inch | EIS Part #: 3M950X1.5 | $ / Roll Pack: 24/Case | ||
Width: 1 Inch | EIS Part #: 3M950X1 | $ / Roll Pack: 36/Case | ||
Width: 0.75 Inch | EIS Part #: 3M950X.75 | $ / Roll Pack: 48 Roll/Case | ||
Width: 0.625 Inch | EIS Part #: 3M950X.625 | $ / Roll | ||
Width: 0.5 Inch | EIS Part #: 3M950X.5 | $ / Roll Pack: 72/Case | ||
Width: 0.375 Inch | EIS Part #: 3M950X.375 | $ / Roll Pack: 96 Roll/Case |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameAdhesive Transfer Tape
Series950
General Features
Shelf Life12 Months
Storage Temperature21 °C
Design & Construction
Adhesive TypeAcrylic
ColorClear/Tan Liner
Liner MaterialDensified Kraft Paper
Performance Details
Adhesive Strength75 oz/Inch
Shear Strength4 psi
Physical Properties
Adhesive Thickness5 mil
Core Size3 Inch
Length60 Yard
Liner Thickness4 mil
Width0.375 Inch
Environmental Condition
ResistsChemical, Humidity, Moisture, Relative Solvent, UV, Plasticizer
Temperature Rating250 °F
Features
- 60 lb densified kraft paper liner, for a wide variety of materials
- Temperature rating of -40 to 250 °F
Applications
- For Attaching a Wide Variety of Similar and Dissimilar Materials where an Aggressive Adhesive with High Initial Adhesion is Desired
