MFR #:468MP
EIS #:PH22-468MP
MFR #:468MP
EIS #:PH22-468MP

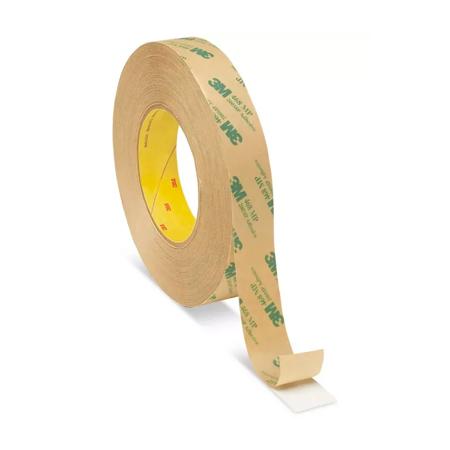

3M 468MP clear transfer tape comes in acrylic adhesive. The variances in thickness often make an important difference in proper performance. Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. The liner material for this product is composed of polycoated kraft paper. - Easy to apply, not messy, easily die-cuttable. Graphic attachment and general industrial joining. Excellent shear strength to resist slippage and edge lifting. Up to 400 °F short-term heat resistance.
$11.17
- $241.91
Select from the options below
3M 468MP clear transfer tape comes in acrylic adhesive. The variances in thickness often make an important difference in proper performance. Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. The liner material for this product is composed of polycoated kraft paper. - Easy to apply, not messy, easily die-cuttable. Graphic attachment and general industrial joining. Excellent shear strength to resist slippage and edge lifting. Up to 400 °F short-term heat resistance.
Product Options
Showing 6 out of 6 options
Width: 6 Inch | EIS Part #: 3M468MPX6 | $ / Roll Pack: 8/Case | ||
Width: 24 Inch | EIS Part #: 3M468MPX241 | $ / Inch Pack: 1/Case | ||
Width: 2 Inch | EIS Part #: 3M468MPX2 | $ / Roll Pack: 24/Case | ||
Width: 1 Inch | EIS Part #: 3M468MPX1 | $ / Roll Pack: 36/Case | ||
Width: 0.75 Inch | EIS Part #: 3M468MPX.75 | $ / Roll Pack: 48 Roll/Case | ||
Width: 0.25 Inch | EIS Part #: 3M468MPX.250 | $ / Roll |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameAdhesive Transfer Tape
Series468MP
General Features
Shelf Life18 Months
Storage Temperature21 °C
Design & Construction
ColorClear/Tan Liner
Liner MaterialPolycoated Kraft Paper
Adhesive TypeAcrylic
Performance Details
Shear StrengthSee TDS
Tensile Strength51 psi
Physical Properties
Adhesive Thickness5.2 mil
Length60 Yard
Liner Thickness4.2 mil
Thickness2.3 mil
Width0.250 Inch
Core Size3 Inch
Environmental Condition
ResistsChemical, Humidity, Moisture, Plasticizer, UV, Water, Temperature, Heat
Temperature Rating400 °F
Features
- It also performs well after exposure to humidity and hot/cold cycles
- Adhesive provides some initial repositionability for placement accuracy when bonding to plastics
- For adhesive strength see TDS
- Temperature rating of -40 to 400 °F
Applications
- For Adhering, Joining, Affixing, Bonding, Mounting, Holding, Laminating and Attaching
