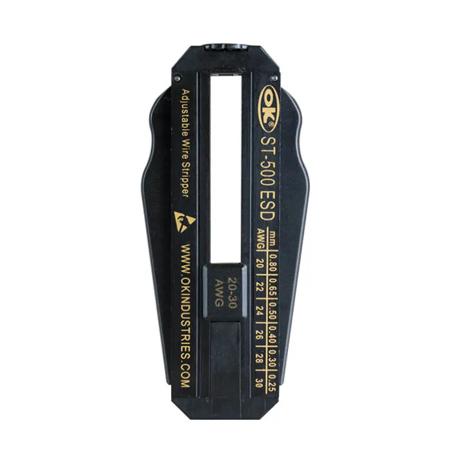

Jonard Industries ST-500ESD Wire Stripper, 20 - 30 AWG, 3.9" L x 1.6" W x 0.6" H, Hardened Steel Blade
- MFR #:ST-500ESD
- EIS #:ST-500ESD
- MFR #:ST-500ESD
- EIS #:ST-500ESD
Available to Order
Min Qty:1
|Qty Increment:1
The ST-500ESD features a static-dissipative housing (ESD-safe). These Precision Wire Strippers feature an adjustment dial that allows the operator to select one of six different settings. A calibrated wire stop can then be adjusted for the desired insulation strip length. Calibrated Wire Stop adjustable from 0.039 - 2 Inch (1 - 50.8 mm). Clean, precise strip of any insulation type. - In a single motion, the operator squeezes and pulls the tool. This action engages four specially hardened blades to cleanly cut the wire insulation while the pulling motion breaks the insulation / conductor bond. Lightweight-weighs 1 oz. Blade is hardened steel (RC58).
$74.54 / Piece
Min Qty:1
|Qty Increment:1
The ST-500ESD features a static-dissipative housing (ESD-safe). These Precision Wire Strippers feature an adjustment dial that allows the operator to select one of six different settings. A calibrated wire stop can then be adjusted for the desired insulation strip length. Calibrated Wire Stop adjustable from 0.039 - 2 Inch (1 - 50.8 mm). Clean, precise strip of any insulation type. - In a single motion, the operator squeezes and pulls the tool. This action engages four specially hardened blades to cleanly cut the wire insulation while the pulling motion breaks the insulation / conductor bond. Lightweight-weighs 1 oz. Blade is hardened steel (RC58).
- Attributes
- Features
- Documents
Attributes
General Information
Item NameWire Stripper
General Features
Net Weight0.089 lb
TypeAdjustable
Design & Construction
Cutting Capacity30 AWG
MaterialPolycarbonate Housing, Hardened Steel Blade
Physical Properties
Height0.6 Inch
Length3.9 Inch
Width1.6 Inch
Features
- Cutting Capacity: 20 - 30 AWG
