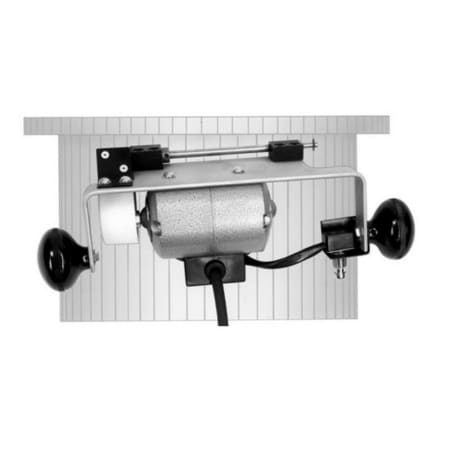

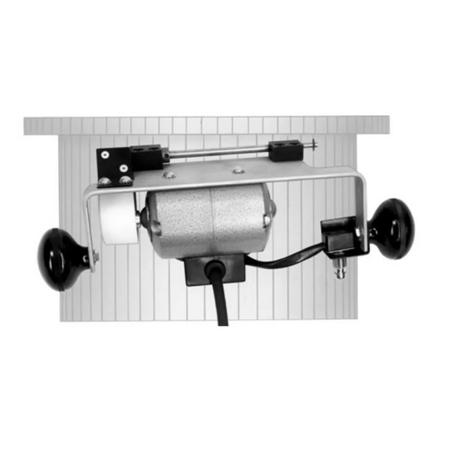

The close-cut undercutter was specially designed to finish off a mica slot when it is necessary to cut within 1/8 Inch of a riser. This unit has a straight solid shaft and needle bearings, both front and rear, for smoother operation. Though we hesitate to recommend carbide saws in any hand-held undercutter, we have had success with them in this smaller unit. - While this small machine can be used for undercutting the full length of smaller commutator slots, one of the more substantial Martindale Undercutters should be used on larger commutators for most of the cut and Close-Cut used for the remaining end against the riser.
Features
- Cuts 1/16 Inch deep with 3/8 Inch diameter saw
- Cuts 3/32 Inch deep with 7/16 Inch diameter saw
- Cuts full depth to within 1/8 Inch of rise
- AC - DC ball bearing motor
- Design of the close-cut allows ample clearance between the undercutter and the commutator surface on even the largest commutators
- Weighs only 3.75 lb
General Information
| Item Name | Undercutter with Carrying Case |
| Series | CCUC |
General Features
| Net Weight | 4.5 lb |
| Type | Close-Cut |
Performance Details
| Motor HP | 1/15 HP |
| Speed Rating | 6000 rpm |
Electrical Properties
| Frequency Rating | 50 Hz |
