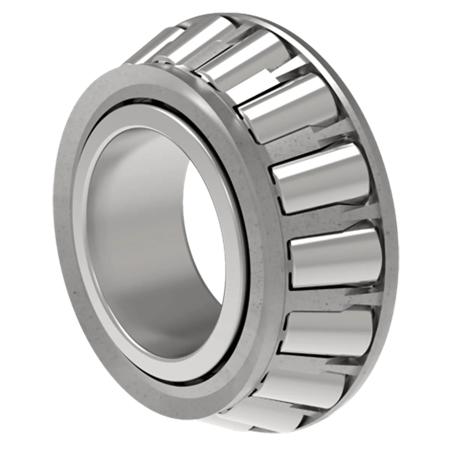

JTEKT Bearings LM11749 - Cone, 0.6875 Inch ID, 0.545 Inch Width, MFR ID KOY-LM11749
- MFR #LM11749
- EIS #LM1174908
- UPC #605790358562
- Midpoint #KOY-LM11749
$16.20 / Piece
Available to Order
Min QTY1QTY Increment1more info
LM11749 -Tapered Roller Bearings, Tapered Roller Bearings
Features
- Best used for high loads or combined radial and axial loads
- Made from premium high carbon, high chromium Japanese steel
- Sold as an individual cup, cone or as a full assembly (cup and cone together)
- Available in inch and metric sizes
General Information
| Item Name | Tapered Roller Bearings |
| Series | LM |
General Features
| Net Weight | 0.119 lb |
Design & Construction
| Bore Type | Round |
| Cage Material | Steel |
| Cage Type | Riveted |
| Lubrication Type | Rust Preventative |
| Material | 52100 Steel |
| Rolling Element | Roller |
| Rolling Element Material | 52100 |
| Row Type | Single row |
Performance Details
| Dynamic Load Capacity | 31.8 kn |
| Operating Temperature | -54 to 121 °C |
| Precision Class | P0 |
| Self Aligning | No |
| Static Load Capacity | 26 kn |
Physical Properties
| Bore Diameter | 0.6875 Inch |
| Outside Diameter | 1.57 Inch |
| Overall Width | 0.545 Inch |
