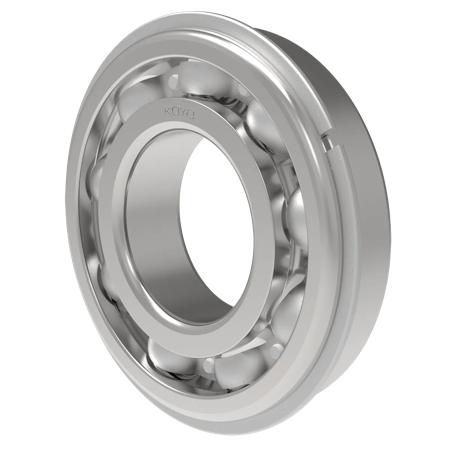

JTEKT Bearings 6313NRC3 - Open Type, 65 mm ID, 140 mm OD, 33 mm Width,, C3 Internal Clearance, Snap Ring on Outer Ring, MFR ID KOY-6313NRC3
- MFR #:6313NRC3
- EIS #:6313NRC308
- UPC #:605790079214
- Midpoint #:KOY-6313NRC3
- MFR #:6313NRC3
- EIS #:6313NRC308
- UPC #:605790079214
- Midpoint #:KOY-6313NRC3
Available to Order
Min Qty:1
|Qty Increment:1
6313NRC3 - Deep Groove Ball Bearing, Deep Groove Ball Bearings
$240.13 / Piece
Min Qty:1
|Qty Increment:1
6313NRC3 - Deep Groove Ball Bearing, Deep Groove Ball Bearings
- Attributes
Attributes
General Information
Item NameDeep Groove Ball Bearings
General Features
Net Weight4.575 lb
Design & Construction
Bore TypeRound
Cage MaterialSteel
Cage TypeRiveted
Closure TypeOpen
Lubrication TypeRust Preventative
MaterialSteel
Rolling ElementBall
Rolling Element MaterialHigh Carbon Chromium Bearing Steel
Row TypeSingle row
Performance Details
Dynamic Load Capacity116 kn
Operating Temperature-30 to 120 °C
Precision ClassClass 0
Self AligningNo
Speed Rating4800 rpm (Grease) | 5800 rpm (Oil)
Static Load Capacity59.9 kn
Physical Properties
Bore Diameter65 mm
Fillet Radius0.0787 Inch
Outside Diameter140 mm
Overall Width33 mm
