JTEKT Bearings NU226R-3C3 - No Rib Inner Ring, 130 mm ID, 230 mm OD, 40 mm Width,C3 Internal Clearance, Machined Brass Cage, MFR ID KOY-NU226RC3FY
- MFR #:NU226R-3C3FY
- EIS #:NU226R-3C3FY08
- UPC #:605790150456
- Midpoint #:KOY-NU226RC3FY
- MFR #:NU226R-3C3FY
- EIS #:NU226R-3C3FY08
- UPC #:605790150456
- Midpoint #:KOY-NU226RC3FY
In Stock | Ready to Ship
Min Qty:1
|Qty Increment:1

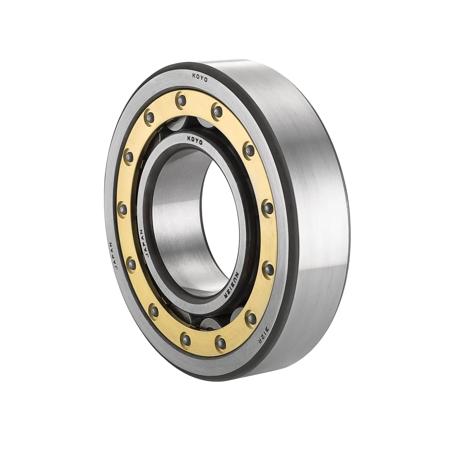

NU226R-3C3 -Cylindrical Roller Bearing
$863.12 / Piece
Min Qty:1
|Qty Increment:1
NU226R-3C3 -Cylindrical Roller Bearing
- Attributes
- Features
Attributes
General Information
Item NameCylindrical Roller Bearings
Series200
General Features
Net Weight15.732 lb
Design & Construction
Bore TypeRound
Cage MaterialBrass
Cage TypeMachined
Lubrication TypeRust Preventative
Material52100
Raceway StyleDouble Ribbed Outer Ring and No Rib Inner Ring
Rolling ElementCylindrical Roller
Rolling Element Material52100
Row TypeSingle row
Performance Details
Dynamic Load Capacity454 kn
Operating Temperature-54 to 121 °C
Precision ClassP0
Self AligningNo
Speed Rating2600 rpm (Grease) | 3200 rpm (Oil)
Static Load Capacity453 kn
Physical Properties
Bore Diameter130 mm
Fillet Radius0.0984 Inch
Outside Diameter230 mm
Overall Width40 mm
Radial Internal ClearanceC3
Features
- Best used for high radial load applications
- Made from premium high carbon, high chromium Japanese steel
- Machined Brass (FY), Polymer (TVP,AG) and Steel Cages (no call out) are available
- Optional rib constructions available (NU, NJ, NUP styles)
- Maximum capacity option (E) is available on most sizes
