JTEKT Bearings 7415B-5GC3 - Single Row, Universal Ground, 40 Degree Contact Angle, Brass Cage, 75 mm ID, 190 mm OD, 45 mm Width,, C3 Internal Clearance, MFR ID KOY-7415B-5GC3FY

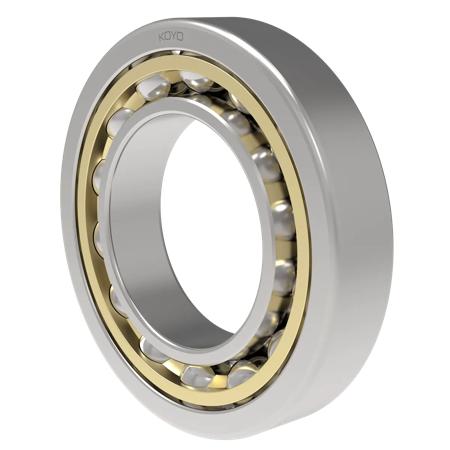

The image shown is representative of the product family and may not specifically be the individual item. 7311B-5GC3 -Angular Contact Bearing, Single Row
  • MFR #:7415B-5GC3FY
  • EIS #:7415B-5GC3FY08
  • UPC #:605790223242
  • Midpoint #:KOY-7415B-5GC3FY
  • MFR #:7415B-5GC3FY
  • EIS #:7415B-5GC3FY08
  • UPC #:605790223242
  • Midpoint #:KOY-7415B-5GC3FY
Available to Order

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
7415B-5GC3 -Angular Contact Bearing, Single Row
$935.63 / Piece

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
7415B-5GC3 -Angular Contact Bearing, Single Row

Attributes

General Information

Item NameAngular Contact Bearings

Series7400

General Features

Net Weight13.77 lb

Design & Construction

Bore TypeCylindrical
Cage MaterialBrass
Cage TypeMachined
Lubrication TypeRust Preventative
Material52100
Mounting TypeSingle
Retainer MaterialBrass
Retainer TypeMachined
Rolling ElementBall
Rolling Element MaterialBall
Row TypeSingle row

Performance Details

Contact Angle40°
Dynamic Load Capacity198 kn
Operating Temperature-54 to 121 °C
Precision ClassClass 0
Self AligningNo
Speed Rating2900 rpm (Grease) | 4000 rpm (Oil)
Static Load Capacity131 kn

Physical Properties

Bore Diameter75 mm
Fillet Radius0.0984 Inch
Number of Bearings1
Outside Diameter190 mm
Overall Width45 mm
Radial Internal ClearanceC3
